3D视图控件更多...

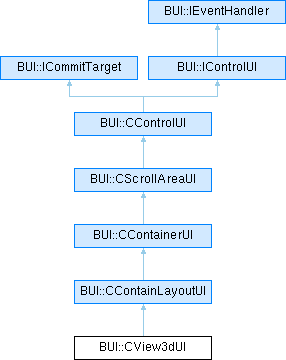

类 BUI::CView3dUI 继承关系图:

Public 成员函数
	CView3dUI ()

	~CView3dUI ()

std::shared_ptr< Render3dData >	CreateNewRender3dData ()

Render3dData *	GetRender3dData (int pos)

void	AddRender3dData (const std::shared_ptr< Render3dData > &item)

void	ClearRender3dData ()

int	CountRender3dData ()

BOOL	OnMouseMove (WPARAM wParam, LPARAM lParam) override

BOOL	OnLButtonDown (WPARAM wParam, LPARAM lParam) override

BOOL	OnLButtonUp (WPARAM wParam, LPARAM lParam) override

BOOL	DoPaintGL (ISurface pSurface, RECT lpUpdate) override
	绘制GL

BOOL	DoPaint (ISurface pSurface, RECT lpUpdate) override
	绘制前景

void	ShellAttribute (const BeString &szName, const BeString &szText) override
	命令控制和属性设置接口

Public 成员函数继承自 BUI::CContainLayoutUI
	CContainLayoutUI ()

	~CContainLayoutUI ()

int	GetZCurSel ()
	获得层叠当前显示索引

void	SetZCurSel (int index)
	设置层叠当前显示索引

CLayoutBox &	GetBoxContainLayout ()
	获得容器布局对象

void	OnShow (bool bShow) override
	控件可见性发生变化时触发

BOOL	OnMessageHandler (UINT message, WPARAM wParam, LPARAM lParam) override

void	CloneAttribute (CControlUI *clone) override
	克隆属性

void	ShellAttribute (const BeString &szName, const BeString &szText) override
	命令控制和属性设置接口

void	SetLayoutCurSel (int index)

int	LayoutAdaptWidth (int expH) override
	自适应宽度计算

int	LayoutAdaptHeight (int expW) override
	自适应高度计算

ILayout *	BoxLayoutMgr () override
	容器布局对象

void	GetLayoutViewRect (RECT *rc) override

Public 成员函数继承自 BUI::CContainerUI
	CContainerUI ()

	~CContainerUI ()

void	ModifyContainerFlags (UINT style, UINT op=ADD_FLAGS)
	设置容器控件特有属性标志

UINT	IsHasContainerFlags (UINT flags) const

void	UpdateHideDelayMs (int ms)
	设置自动隐藏延时的时长

void	SetBkImage (GImageIconInfo *img)
	设置背景图片

SIZE	GetChildMaxViewSize () const
	获得所有子控件的可见范围

void	SetCaptionHeight (int h)
	设置标题栏高度

int	GetCaptionHeight (BOOL display=TRUE)
	获得标题栏高度

void	SetDragType (DragMode type)
	设置拖拽类型。具体表现为标题栏拖拽，或整体拖拽，或不可拖拽

UINT	DoModal (int nMesc=0)
	模态阻塞弹出

void	ChangeThemeColors () override
	切换主题色

void	OnControlSize () override
	控件尺寸改变时触发

BOOL	OnNcHitTest (POINT pt) override

BOOL	OnLButtonDown (WPARAM wParam, LPARAM lParam) override

BOOL	OnLButtonUp (WPARAM wParam, LPARAM lParam) override

BOOL	OnLButtonCliked (WPARAM wParam, LPARAM lParam) override

BOOL	OnMouseMove (WPARAM wParam, LPARAM lParam) override

BOOL	OnMouseLeave (WPARAM wParam, LPARAM lParam) override

BOOL	OnVSCrollBar (WPARAM wParam, LPARAM lParam) override

BOOL	OnHSCrollBar (WPARAM wParam, LPARAM lParam) override

BOOL	OnMessageHandler (UINT message, WPARAM wParam, LPARAM lParam) override

BOOL	DoPaint (ISurface pSurface, RECT lpUpdate) override
	绘制前景

BOOL	DoPaintBackGround (ISurface pSurface, RECT lpUpdate) override
	绘制背景

BOOL	DoPaintBorder (ISurface pSurface, RECT lpUpdate) override
	绘制边框

void	CloneAttribute (CControlUI *clone) override
	克隆属性

void	ShellAttribute (const BeString &szName, const BeString &szText) override
	命令控制和属性设置接口

Public 成员函数继承自 BUI::CScrollAreaUI
	CScrollAreaUI ()

virtual	~CScrollAreaUI ()

void	SetWheelSpeed (UINT speed)
	设置滑动速度

void	SetBackIntervalColor (std::vector< GColor > &colors)
	设置背景网格间隔颜色表

void	ResetScrollBarRange ()
	重置内置滚动条范围

void	ScrollJumpToView (RECT &rc)
	让rc处于可见范围内

void	ScrollJumpToControlUI (UINT nBar, CControlUI *child)
	让child处于可见范围内

void	RefreshClientRect (RECT rc)
	刷新矩形区域

void	ScreenToClientPoint (POINT &pt) const
	屏幕坐标转换为客户坐标

void	SetScrollBarUISize (int size)
	设置内置滚动条尺寸大小

void	SetEmptyTipImage (GImageIconInfo *img)
	设置提示图标(内容为空时显示)

void	SetEmptyTipText (BeString text)
	设置提示文本(内容为空时显示)

CScrollBarUI *	GetScrollbarUI (UINT nBar=SBF_HORZ) const
	获得内置滚动条控件对象

int	GetScrollbarPos (UINT nBar=SBF_HORZ) const
	获得滚动条(nBar)的位置

void	SetScrollbarPos (UINT nBar, int pos)
	设置滚动条(nBar)的位置

void	SetScrollbarRange (UINT nBar, int nMin, int nMax)
	获得滚动条(nBar)的范围

int	GetScrollbarRange (UINT nBar=SBF_HORZ) const
	获得滚动条(nBar)的范围最大值

int	GetScrollDistance (UINT nBar=SBF_HORZ) const
	获得滚动条(nBar)的距离=max-page.

int	GetScrollbarPage (UINT nBar=SBF_HORZ) const
	获得滚动条(nBar)的页大小

BOOL	IsScrollVaild (UINT nBar=SBF_HORZ) const
	判断滚动条是否有效

void	SetScrollbarPosWithPercentage (UINT nBar, int percent)
	根据百分比设置滚动条的位置

int	GetScrollbarPercentage (UINT nBar=SBF_HORZ) const
	获得百分比位置

void	SetScrollbarPosEnd (UINT nBar=SBF_HORZ)
	设置滚动条位置到最后

void	EnableScrollBarAutoHide (BOOL enable)
	开启(或禁用)内置滚动条在失去焦点时，自动隐藏。默认禁用状态

void	ForbidScrollBar (UINT nBar, BOOL bBan)
	强制禁用(或开启)滚动条。默认开启状态

void	SetScrollbarAlign (UINT nBar, AlignmentStyle uAlign)
	设置内置滚动条的对齐方式

void	UpdateScrollBarPostion (RECT *lpRect)
	根据对齐方式在指定矩形区域内，重新计算内置滚动条的显示坐标

void	DoPaintEmptyTips (ISurface pSurface, RECT &rcPaint, RECT lpUpdate)
	绘制空内容时的提示信息

void	OnCreate () override

void	OnControlSize () override
	控件尺寸改变时触发

void	GetLayoutViewRect (RECT *rc) override

void	ChangeThemeColors () override
	切换主题色

void	OnParseItemData (XMLItem *pNode) override
	解析xml文件对应的数据

BOOL	OnMessageHandler (UINT message, WPARAM wParam, LPARAM lParam) override
	虚拟控件最终消息处理过程

BOOL	OnMouseWheel (WPARAM wParam, LPARAM lParam) override
	鼠标滑轮消息

BOOL	OnMouseEnter (WPARAM wParam, LPARAM lParam) override
	在鼠标进入控件时触发

BOOL	OnMouseLeave (WPARAM wParam, LPARAM lParam) override

BOOL	OnHSCrollBar (WPARAM wParam, LPARAM lParam) override

BOOL	OnVSCrollBar (WPARAM wParam, LPARAM lParam) override

void	CloneAttribute (CControlUI *clone) override
	克隆属性

void	ShellAttribute (const BeString &szName, const BeString &szText) override
	命令控制和属性设置接口

Public 成员函数继承自 BUI::CControlUI
	CControlUI ()

virtual	~CControlUI ()

BOOL	Create (IManageHandler pManger, LPCTSTR strObjName, LPCTSTR strText, DWORD style, RECT rc, CControlUI parent=NULL, UINT nID=0)
	创建虚拟控件:创建过程中，会将控件加入到全局的垃圾管理机制中。用于在程序退出时，释放内存

BOOL	Create (IManageHandler pManger, LPCTSTR strObjName, LPCTSTR strText, DWORD style, int x, int y, int cx, int cy, CControlUI pPar=NULL, UINT nID=0)

void	InsertChild (CControlUI pNewChild, CControlUI pPrev)
	插入子控件

BOOL	RemoveChild (CControlUI *pChild)
	删除子控件

IManageHandler *	GetManagerUI () const
	返回管理器对象

BOOL	SendParentMessage (UINT message, WPARAM wParam, LPARAM lParam) const

BOOL	SendToManager (UINT message, WPARAM wParam=0, LPARAM lParam=0)

void	SendToAllChilds (UINT message, WPARAM wParam, LPARAM lParam)
	将消息传递给每一个子控件响应

void	SetEventHandler (IEventHandler *hander)
	设置消息托管

void	SetParent (CControlUI *pParent)
	设置父控件

CControlUI *	Parent () const
	父控件

CControlUI *	FirstChild () const
	第一个孩子节点

CControlUI *	LastChild () const
	最后的孩子节点

CControlUI *	NextSibling () const
	下一个兄弟节点

CControlUI *	PrevSibling () const
	上一个兄弟节点

CControlUI *	DelegaterPrev () const
	托管链表前向指针

CControlUI *	DelegaterNext () const
	托管链表后向指针

void	AddAnimate (const BeString &id, std::shared_ptr< GAnimateProperty > animate)
	添加动画

void	PauseAnimate (BOOL pause)
	动画使能：暂停(TRUE)或开启(FALSE)

GAnimateTransformVector &	AnimateTransform ()
	获得动画数组

void	ModifyControlFlags (uint64_t style, UINT op=ADD_FLAGS)
	设置控件风格

uint64_t	IsHasControlFlags (uint64_t flags) const

uint64_t	GetControlFlags () const

void	SetControlNotes (BeString str)
	设置控件注释信息

BeString	GetControlNotes () const
	获得控件的注释信息

LPCTSTR	Text () const
	获得文本

void	SetControlText (BeString str, BOOL bRefresh=FALSE)
	设置文本

void	SetAdaptMinText (BeString str)
	布局最小适应文本

void	SetControlTextByNumber (double value, int nPrecision, BOOL remoe_last_zero)
	以数值设置文本

double	GetControlTextNumber () const
	获得文本表示的数值

void	SetVarName (const BeString &str)
	设置控件唯一标识符

void	SetVarNameA (const char *varname)
	设置控件唯一标识符

void	SetVarNameW (const WCHAR *varname)
	设置控件唯一标识符

void	SetCommitTarget (ICommitTarget *obj)
	设置数据提交对象

void	AddAbsordLayout (std::shared_ptr< ILayout > layout)
	添加悬浮布局

void	DelAbsordLayout (std::shared_ptr< ILayout > layout)
	删除悬浮布局

void	SetBlurSize (UINT size)
	设置高斯模糊尺寸

UINT	BlurSize () const
	返回高斯模糊尺寸

GBrushArray	GetControlColorsStyle (ColorSceneType type)
	获取颜色外观

void	SetControlColorsStyle (ColorSceneType type, GBrushArray colors)
	设置颜色外观

void	SetAttributeSaveNode (XMLItem *node)
	设置属性保存节点

XMLItem *	GetAttributeSaveNode () const
	获得属性保存节点

void	DoSaveAttributeToNode ()
	保存控件属性到(SetSaveNode(node))注册的节点

void	SetShadowText (int dx, int dy, int blur_x, int blur_y, GColor color)
	设置文本阴影

void	SetBorderRoundFlags (int pos, int flags)

void	SetBorderRoundSize (RoundRectRadius &radius)

void	GetRoundRadius (RoundRectRadius &ra) const

void	GetRoundRadiusWithRect (const RECT &rc, RoundRectRadius &ra) const

GShadowContain &	GetShadowContain ()
	获得阴影容器对象

GFont *	GetFont () const
	获得字体

void	SetFont (GFont *font)
	设置字体

void	SetFontSize (int nHeight)
	设置字体大小

void	SetStrokeSize (UINT size)
	设置轮廓线宽

void	SetPositionX (int x)
	设置控件x坐标

void	SetPositionY (int y)
	设置控件y坐标

void	SetPositionXY (int x, int y)
	设置控件(x,y)坐标

int	Width () const
	获得控件宽度

void	SetWidth (int w)
	设置控件宽度

int	Height () const
	获得控件高度

void	SetHeight (int h)
	设置控件高度

int	SaveAsImage (LPCTSTR outpng)
	保存控件图像为png

int	SaveAsLongImage (LPCTSTR outpng)
	保存为长图

void	BindAction (std::shared_ptr< IActionNotify > notify)
	绑定事件

void	ClearAction ()
	清空事件

void	TriggerAction ()
	触发事件

ActionKeyboardMap *	GetActionKeyboard (BOOL is_create=TRUE)
	获得键盘事件表

void	SetCaptureCtl ()
	捕获鼠标

void	ReleaseCaptureCtl ()
	释放焦点捕获

void	BreakAwayUITree ()
	脱离父控件树

void	SetClipZoom (int x, int y, int w, int h)
	设置控件可视裁剪区域。约束控件的显示区域

BOOL	BringBottomMost ()
	将控件移动到所有兄弟控件中的第一个

BOOL	BringTopMost ()
	将控件移动到所有兄弟控件中的最后一个

BOOL	TestOrder () const
	判断是否被其他控件遮盖 TRUE 代表遮盖

void	TipTrack (int x, int y, LPCTSTR lpSz=NULL)
	提示框显示位置 x, y 是相对窗口

void	TipHide ()
	隐藏提示框

void	ShowControl (bool bShow, bool notify_layout=true)
	显示虚拟窗口

void	SetVisibleWhenMouseHover (BOOL open)
	设置只在鼠标悬停时，显示控件

BOOL	IsVisible () const
	控件在父控件中的显示状态

BOOL	IsFocused () const
	焦点状态

void	EnableControl (bool bEnable, bool refresh=true)
	TRUE:启用控件. FALSE:禁用控件

void	EnableNodeFlagControl (bool bEnable, bool refresh=true)
	nodedata包含的控件。表示node是否被禁用

BOOL	IsEnabled () const
	判断是否可用。TRUE：代表可用

BOOL	IsBkShowTiming () const

void	SetBkShowTiming (ShowModel mode)
	背景绘制时机

void	SetBorderShowTiming (ShowModel mode)
	边框绘制时机

BOOL	IsCreateSucceed () const
	判断是否是有效控件

BOOL	IsShortCutVaild ()
	判断是否存在快捷键

void	EnableShortCut (bool benable)
	开启(或禁用)快捷键

void	SetShortCut (int vKey)

void	SetShortCutCtrlCode (UBYTE vKey)

BOOL	DoShortCut (UBYTE ctrl, UBYTE vKey)

void	EnableBorderAdjustFlag (UINT alignborder=ALIGN_LEFT, bool bEnable=true)
	设置边框调整使能

void	SetToolTipText (LPCTSTR lpszTip)
	设置提示文本

void	SetToolTipText (BeString strTip)
	设置提示文本

void	SetPopTipUI (std::shared_ptr< CControlUI > popui, std::shared_ptr< PopControlInfo > popinfo)
	设置弹出pop显示ui

void	PopTipUI (BOOL bShow)
	展示pop状态

BOOL	HitTestPopUI (POINT pt)
	是否命中弹出控件

void	GetRectInScreen (LPRECT lpRect)
	获得在HWND中的绝对位置

void	SetControlMouseCursor (CursorMouse id)
	设置控件的鼠标光标

void	SetFocus ()
	取得焦点和HWND焦点不要混淆，这是不一样的东西，只是函数名称我为了好记住

void	Scroll (int x, int y)
	视区的坐标原点偏移

void	Refresh (BOOL bSynch=FALSE)
	窗口失效重绘

void	RefreshThreadSafe ()
	在gui线程之外时调安全的刷新函数

void	RefreshRect (RECT *lprcUpdate)
	窗口失效重绘

void	GetDragPos (RECT *lprect) const
	窗口拖拽的原始位置

void	OnDestory ()
	控件销毁

void	UpdateAdaptLayout () const
	更新adapt布局

BOOL	MoveControl (RECT rect, BOOL bRepaint=TRUE)
	移动控件到目标矩形区域

BOOL	MoveControl (int x, int y, int w, int h, BOOL bRepaint=TRUE)
	移动控件位置。(x,y)代表父控件坐标空间值

void	MoveDragControl (int dx, int dy, BOOL bRepaint=TRUE)
	拖拽移动。（dx，dy）移动距离向量

void	MoveCenterByPercent (RECT *rcView, float xScale=0.5, float yScale=0.5, int w=0, int h=0, BOOL adapt_dpi=FALSE, BOOL bRepaint=TRUE)
	将控件移动到以(xScale, yScale)百分比的中心点

void	ResetLayoutChilds (UINT flags=0)
	重置子布局

void	SetSkinModule (BeString &skinGroup)
	设置皮肤id

void	SetSkinStyle (BeString &skinName)
	设置皮肤id

void	SetDrawStyleWithFourCode (LPCTSTR draw_style)
	设置控件绘制的风格样式，同一种控件的表现样式可以有多种。输入值只有前四位字符有效。一个控件表现形式在实际中不会很多。不用整形的目的是增强可读性

BOOL	IsDrawStyleWithFourCode (TCHAR a='\0', TCHAR b='\0', TCHAR c='\0', TCHAR d='\0') const
	判断是否匹配四字符数

void	GetSkinModule (BeStringShort64 &moduleName)

void	GetSkinStyle (BeStringShort64 &styleName)

RECT	GetMarginAreaRect (BOOL contain_shadow=FALSE) const
	获得外边距下的相对于窗口的矩形区域

RECT	GetControlRect () const
	获得控件在窗口坐标下的矩形区域

RECT	GetControlClientRect () const
	返回基于客户区的坐标

RECT	GetControlScreenRect () const
	返回基于屏幕的坐标

RECT	GetOppositePosition (RECT rcContainer, RECT rcChild) const
	返回rcChild相对rcrcContainer坐标系的位置

SIZE	GetStringSize (LPCTSTR str) const
	获得字符串尺寸

POINT	ViewOrigin () const
	坐标原点偏移量

ILayout *	GetAttchLayout () const
	获得管理控件自身的布局对象

ShowStatus	GetPaintStatus (bool ignoreLButton=true) const
	获得控件状态

POINT	GetClientPoint (double w_percent, double h_percent)
	获得控件坐标系下百分比的绝对位置

void	InsertGCChain (CControlUI prev, CControlUI next)

void	DeleteGCChain (CControlUI prev, CControlUI next)

CControlUI *	FindTabFocusControl (BOOL isNext) const
	获得接下来的焦点控件

void	NotifyMangerIsDestory ()
	告知管理者已销毁

ST_Policy *	GetSignalPolicy ()
	信号和槽机制的回收器

BOOL	TranslateSyncMsg (UINT message, WPARAM wParam, LPARAM lParam)
	向上层转发同步消息

BOOL	OnMessageHandler (UINT message, WPARAM wParam, LPARAM lParam) override
	虚拟控件最终消息处理过程

int	FindChildControlByHandler (std::vector< CControlUI * > &vec, IEventHandler *handler)
	查找(通过控件的SetEventHandler()指定的事件处理对象来寻找)

int	FindAllControlByName (std::vector< CControlUI * > &vec, LPCTSTR szName, BOOL isRecursiveCall=TRUE) const
	在当前控件之下查找所有同名控件

int	FindAllControl (std::vector< CControlUI * > &vec, BOOL isRecursiveCall=TRUE) const
	获得所有子控件

CControlUI *	FindControlByName (LPCTSTR szName, BOOL isRecursiveCall=TRUE) const
	在当前控件之下查找控件

CControlUI *	GetParent () const
	获得父窗口

CControlUI *	GetParentOnTopMost () const
	获得最顶层父窗口

CControlUI *	HitTestChildControl (POINT pt) const
	定位到子控件对象

CControlUI *	NextFocusControl (BOOL isPrev=FALSE) const
	下一个焦点控件

void	SaveSettingConfig ()
	保存配置

BOOL	OnPaintControl (ISurface *pSurface, LPRECT lprcUpdate=NULL, LPRECT lprcParentViewPort=NULL)
	控件渲染

float	BackOpacity () const
	背景透明度

float	BorderOpacity () const
	轮廓边框透明度

virtual CControlUI *	HitTestControl (POINT pt)
	根据位置得到最终的定位控件

virtual BOOL	HitTest (POINT pt)
	点击测试

virtual void	GetLayoutViewRect (RECT *rc)

virtual BeString	GetControlText ()

virtual void	GetControlValueText (BasicStringBuffer &buffer)
	获得控件所表达的数据的文本，比如复选框的状态("0"/"1"),方便上层统一操作

virtual void	SetControlValueText (const BeString &str)
	设置控件所表达的数据的文本，比如复选框的状态("0"/"1"),方便上层统一操作

virtual ILayout *	BoxLayoutMgr ()
	容器布局对象

virtual void	Activate ()
	激活

virtual CControlUI *	Clone ()
	克隆对象

virtual void	ChangeThemeColors ()
	切换主题色

virtual void	ShellAttribute (const BeString &szName, const BeString &szText)
	命令控制和属性设置接口

BOOL	ShellAttributeToChildControl (const BeString &childname, const BeString &szName, const BeString &szText)

virtual void	OnParseItemData (XMLItem *pNode)
	解析xml文件对应的数据

virtual void	OnParseAnimate (XMLItem *pNode)
	解析控件动画对象

virtual void	OnSaveConfigSetting (XMLItem *node)
	保存控件属性到全局配置文件

virtual void	OnLoadConfigSetting (XMLItem *node)
	加载控件属性

virtual void	OnCreate ()
	产生时间是窗口创建之后显示之前

virtual void	OnFontChange ()
	字体更改

virtual void	OnControlSize ()
	控件尺寸改变时触发

virtual void	OnShow (bool bShow)
	控件可见性发生变化时触发

virtual void	OnCtrlKillFocus ()
	ui控件失去焦点

virtual void	OnCtrlSetFocus ()
	ui控件获得焦点

virtual BOOL	OnKillFocus (WPARAM wParam, LPARAM lParam)
	当管理的句柄HWND失去焦点时进入此函数，也就是此函数实际上是窗口 MSG_WND_KILLFOCUS的响应

virtual BOOL	OnHSCrollBar (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnVSCrollBar (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnSetCursor (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnNcHitTest (POINT pt)

virtual BOOL	OnMouseMove (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnMouseEnter (WPARAM wParam, LPARAM lParam)
	在鼠标进入控件时触发

virtual BOOL	OnMouseLeave (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnMouseWheel (WPARAM wParam, LPARAM lParam)
	鼠标滑轮消息

virtual BOOL	OnLButtonDown (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnLButtonUp (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnLButtonCliked (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnRButtonDown (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnRButtonUp (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnRButtonCliked (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnKeyDown (WPARAM wParam, LPARAM lParam)
	键盘消息

virtual BOOL	OnKeyUp (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnChar (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnTimerEvent (unsigned int timerid, UINT umsec)
	定时器事件响应

virtual BOOL	DoPaintShadow (ISurface pSurface, bool inset, RECT lpUpdate)

virtual BOOL	OnPaintControl3D (ISurface *pSurface, LPRECT lprcUpdate)

virtual BOOL	DoPaintBackGround (ISurface pSurface, RECT lpUpdate)
	绘制背景

virtual BOOL	DoPaint (ISurface pSurface, RECT lpUpdate)
	绘制前景

virtual BOOL	DoPaintBorder (ISurface pSurface, RECT lpUpdate)
	绘制边框

virtual BOOL	DoPaintFinished (ISurface pSurface, RECT lpUpdate)
	绘制结束事件，极少场景需要用到

virtual BOOL	DoPaintGL (ISurface pSurface, RECT lpUpdate)
	绘制GL

virtual BOOL	OnDropBegin ()
	鼠标拖拽开始

virtual BOOL	OnDropEnd ()
	鼠标拖拽结束

virtual void	CloneAttribute (CControlUI *clone)
	克隆属性

int	LayoutAdaptWidth (int expH) override
	自适应宽度计算

int	LayoutAdaptHeight (int expW) override
	自适应高度计算

int	GetSplitControlOffsetW () override
	获得拆分宽度偏移

int	GetSplitControlOffsetH () override
	获得拆分高度偏移

void	Layout (int x, int y, int w, int h, UINT flags) override

bool	IsVisibleLayout () override
	布局可见性判断

RECT	GetPosition () override
	获得布局矩形区域位置

void	SetLauoutInfo (ILayout *parent, int w, int h, SizeMode stw, SizeMode sth)

void	ChangeManager (IManageHandler *pMagr)
	改变控件的管理对象(将抽象控件改变实际窗口的作用域)。

void	DoChangeThemeColors (const BeString &name)
	主题应用

Public 成员函数继承自 BUI::ICommitTarget
	ICommitTarget ()

virtual	~ICommitTarget ()

virtual void	OnSummitTarget (FourCode four_code, LPCTSTR data)
	对象之间传递数据的提交操作

Public 成员函数继承自 BUI::IControlUI
	IControlUI ()

virtual	~IControlUI ()

virtual int	LayoutAdaptWidth (int expH)
	自适应宽度计算

virtual int	LayoutAdaptHeight (int expW)
	自适应高度计算

virtual int	GetSplitControlOffsetW ()
	获得拆分宽度偏移

virtual int	GetSplitControlOffsetH ()
	获得拆分高度偏移

virtual void	Layout (int x, int y, int w, int h, UINT flags=0)

virtual RECT	GetPosition ()
	获得布局矩形区域位置

virtual bool	IsVisibleLayout ()
	布局可见性判断

Public 成员函数继承自 BUI::IEventHandler
	IEventHandler ()

virtual	~IEventHandler ()

virtual BOOL	OnMessageHandler (UINT message, WPARAM wp, LPARAM lp)

Protected 属性
std::vector< std::shared_ptr< Render3dData > >	m_3d_list

POINT	m_pt_pre

Protected 属性继承自 BUI::CContainLayoutUI
CLayoutBox	m_layout_box

Protected 属性继承自 BUI::CContainerUI
GBrushArray	m_bru_fill_title

GBrushArray	m_bru_text_title

GBrushArray	m_bru_stroke_grid

int	m_grid_line_spacing

UINT	m_caption_text_align

RECT	m_rect_zoom

RECT	m_rect_expand

UINT	m_caption_height

UINT	m_model

UINT	m_hit_temp

int	m_hit_click

DragMode	m_drag_mode

SIZE	m_min_size

SIZE	m_max_size

SIZE	m_text_size

UINT	m_contain_flags

GImageIconInfo *	m_back_image

MouseState	m_close_state

CTimerTask	m_timer_hide_delay

Protected 属性继承自 BUI::CScrollAreaUI
int	m_wheel_speed

int	m_bar_size

CScrollBarUI *	m_scroll_hor

CScrollBarUI *	m_scroll_ver

AlignmentStyle	m_hor_bar_align

AlignmentStyle	m_ver_bar_align

BOOL	m_is_forbid_hor

BOOL	m_is_forbid_ver

BOOL	m_is_display_bar_when_mouse_enters

CNodeDataLists	m_nodelist_when_empty

std::vector< GColor >	m_back_interval_colors

Protected 属性继承自 BUI::CControlUI
IEventHandler *	m_event_handler

ICommitTarget *	m_commit_target

BeString	m_text

BeString	m_name_skin_module

BeString	m_name_skin_style

BeString	m_capture_save_file

BeString	m_text_notes

Location	m_locationinfo

POINT	m_point_origin

uint64_t	m_flags_ctrl

RECT	m_rect_begin_track

RECT	m_rect_clip

GFont *	m_font

CursorMouse	m_cursor

UINT	m_border_size

ActionList	m_action

ActionKeyboardMap *	m_kb_event

GBrushArray	m_bru_fill

GBrushArray	m_bru_stroke

GBrushArray	m_bru_text

BeString	m_text_min_adapter

ILayout *	m_layout

GShadowContain	m_shadow_contain

ShadowInfo *	m_shadow_text

std::map< BeString, std::shared_ptr< GAnimateProperty > >	m_anim_all

std::shared_ptr< GAnimatePropertyValue< float > >	m_anima_fill_opacity

std::shared_ptr< GAnimatePropertyValue< float > >	m_anima_stroke_opacity

GAnimateTransformVector	m_anim_trans

RoundRectRadius	m_round_radius

UBYTE	m_round_radius_mode [8]

MarginInfo	m_margin_on_hover

FourCode	m_draw_style

BeString	m_text_poptips

std::shared_ptr< CControlUI >	m_pop_box_ui

std::shared_ptr< PopControlInfo >	m_pop_attribute

std::vector< std::shared_ptr< ILayout > >	m_absord_uis

ST_Policy	m_sig_policy

syntax_info *	m_cmd_ast

XMLItem *	m_save_node

UBYTE	m_num_key_ctrl

UBYTE	m_num_key_code

UBYTE	m_hit_flag

UBYTE	m_key_down

额外继承的成员函数
静态 Public 成员函数继承自 BUI::CControlUI
static void	ChangeParent (CControlUI pThis, CControlUI pNewpar, CControlUI *pAfterchild)

static void	ParseShortCutText (const char *text, UINT &vCtrl, UINT &vKey)
	解析快捷键

static BeString	ConvertShortCutCodeToText (UINT vCtrl, UINT vKey)
	快捷键转换为字符串

Public 属性继承自 BUI::CControlUI
BeString	m_name

UINT	m_int_id

IManageHandler *	m_manager

CControlUI *	m_parent

CControlUI *	m_first_child

CControlUI *	m_last_child

CControlUI *	m_next_sibling

CControlUI *	m_prev_sibling

CControlUI *	m_gc_prev_

CControlUI *	m_gc_next_

CControlUI *	m_break_prev_

CControlUI *	m_break_next_

RECT	m_rect_pos

UINT	m_blur_size

UBYTE	m_visible
	全部为0代表可见 bit0: 表示控件自身的可视状态 bit1: 表示父控件的可视状态 bit2: 表示鼠标进入时才有可视状态

UBYTE	m_enable
	全部为0代表可用 bit0 表示控件自身的可用状态 bit1 表示父控件的禁用状态 bit2: nodecell禁用状态

UBYTE	m_bk_show_timing
	ShowModel OnNever 从不绘制 OnAlways 一直绘制 OnHighLight 高亮时绘制

UBYTE	m_border_show_timing

Protected 成员函数继承自 BUI::CContainerUI
void	Zoomed ()

void	DragMove (POINT pt)

void	OnChangeChildsPos ()

void	GetCloseRect (RECT *rc)

UINT	HitTestType (POINT point)

Protected 成员函数继承自 BUI::CScrollAreaUI
void	ShowChildScrollBar (BOOL show)

UINT	GetScrollStateCode () const

Protected 成员函数继承自 BUI::CControlUI
void	UpdateMarginStateFlag ()
	更新margin状态标志位

BOOL	SetMouseCursor (CursorMouse id)
	设置系统光标

void	InsertBreakChain (CControlUI prev, CControlUI next)

void	DeleteBreakChain (CControlUI prev, CControlUI next)

void	ClientToHWNDScreen ()
	将控件坐标转换为窗口下的坐标

void	RePlotChildPos ()

void	AdjustLayoutControlSize (POINT pt)
	用户调整控件大小

BOOL	IsRedrawHovn () const

void	NotifyChildControlEnableChange (bool bEnable)
	父控件被禁用时，同步更新子控件禁用状态

void	NotifyChildControlVisableChange (bool bShow)
	父控件被隐藏时，同步更新子控件隐藏状态

静态 Protected 成员函数继承自 BUI::CControlUI
static UBYTE	ReturnBitFlag (UBYTE value, UINT bit_pos, BOOL bEnable)

详细描述

3D视图控件

构造及析构函数说明

◆ CView3dUI()

BUI::CView3dUI::CView3dUI ( )

◆ ~CView3dUI()

BUI::CView3dUI::~CView3dUI ( )

成员函数说明

◆ AddRender3dData()

void BUI::CView3dUI::AddRender3dData ( const std::shared_ptr< Render3dData > & item )

◆ ClearRender3dData()

void BUI::CView3dUI::ClearRender3dData ( )

◆ CountRender3dData()

int BUI::CView3dUI::CountRender3dData ( )

◆ CreateNewRender3dData()

std::shared_ptr< Render3dData > BUI::CView3dUI::CreateNewRender3dData ( )

◆ DoPaint()

BOOL BUI::CView3dUI::DoPaint	(	ISurface *	pSurface,
		RECT *	lpUpdate
	)

overridevirtual

绘制前景

重载 BUI::CContainerUI .

◆ DoPaintGL()

BOOL BUI::CView3dUI::DoPaintGL	(	ISurface *	pSurface,
		RECT *	lpUpdate
	)

overridevirtual

绘制GL

重载 BUI::CControlUI .

◆ GetRender3dData()

Render3dData * BUI::CView3dUI::GetRender3dData ( int pos )

◆ OnLButtonDown()

BOOL BUI::CView3dUI::OnLButtonDown	(	WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::CContainerUI .

◆ OnLButtonUp()

BOOL BUI::CView3dUI::OnLButtonUp	(	WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::CContainerUI .

◆ OnMouseMove()

BOOL BUI::CView3dUI::OnMouseMove	(	WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::CContainerUI .

◆ ShellAttribute()

void BUI::CView3dUI::ShellAttribute	(	const BeString &	szName,
		const BeString &	szText
	)

overridevirtual

命令控制和属性设置接口

szName属性	szText语法格式
contain-layout 容器布局信息	示例 contain-layout="box-type:horizontal;cursel:0;interval:5;padding:10,10,10,10"
	box-type布局方式： horizontal :水平布局 vertical :垂直布局 Layered :层叠布局
	cursel 当前布局索引
	interval 布局元素之间的间隔
	padding 布局的边距

重载 BUI::CContainLayoutUI .

类成员变量说明

◆ m_3d_list

std::vector<std::shared_ptr<Render3dData> > BUI::CView3dUI::m_3d_list

protected

◆ m_pt_pre

POINT BUI::CView3dUI::m_pt_pre

protected

Public 成员函数

Protected 属性

额外继承的成员函数

详细描述

构造及析构函数说明

◆ CView3dUI()

◆ ~CView3dUI()

成员函数说明

◆ AddRender3dData()

◆ ClearRender3dData()

◆ CountRender3dData()

◆ CreateNewRender3dData()

◆ DoPaint()

◆ DoPaintGL()

◆ GetRender3dData()

◆ OnLButtonDown()

◆ OnLButtonUp()

◆ OnMouseMove()

◆ ShellAttribute()

类成员变量说明

◆ m_3d_list

◆ m_pt_pre
