无布局功能的容器类,控件的位置全靠用户的绝对位置来确定。改变控件位置，需要开发者控制。更多...

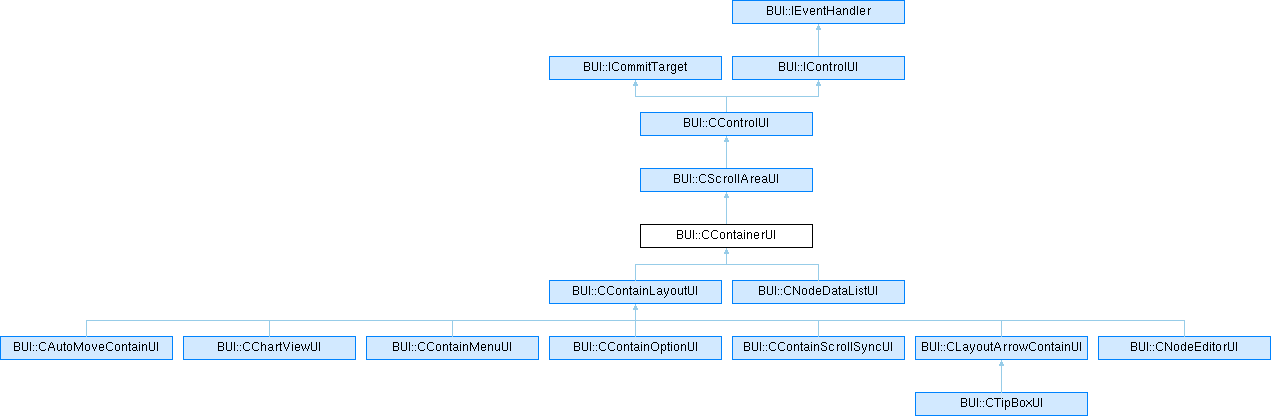

类 BUI::CContainerUI 继承关系图:

Public 成员函数
	CContainerUI ()

	~CContainerUI ()

void	ModifyContainerFlags (UINT style, UINT op=ADD_FLAGS)
	设置容器控件特有属性标志

UINT	IsHasContainerFlags (UINT flags) const

void	UpdateHideDelayMs (int ms)

void	SetBkImage (GImageIconInfo *img)

SIZE	GetChildMaxViewSize () const
	获得所有子控件的可见范围

void	SetCaptionHeight (int h)

int	GetCaptionHeight (BOOL display=TRUE)

void	SetDragType (DragMode type)

UINT	DoModal (int nMesc=0)

void	ChangeThemeColors (int theme) override
	切换主题色

void	OnControlSize () override
	控件尺寸改变时触发

BOOL	OnNcHitTest (POINT pt) override

BOOL	OnLButtonDown (WPARAM wParam, LPARAM lParam) override

BOOL	OnLButtonUp (WPARAM wParam, LPARAM lParam) override

BOOL	OnLButtonCliked (WPARAM wParam, LPARAM lParam) override

BOOL	OnMouseMove (WPARAM wParam, LPARAM lParam) override

BOOL	OnMouseLeave (WPARAM wParam, LPARAM lParam) override

BOOL	OnVSCrollBar (WPARAM wParam, LPARAM lParam) override

BOOL	OnHSCrollBar (WPARAM wParam, LPARAM lParam) override

BOOL	OnMessageHandler (UINT message, WPARAM wParam, LPARAM lParam) override

BOOL	DoPaint (ISurface pSurface, RECT lpUpdate) override
	绘制前景

BOOL	DoPaintBackGround (ISurface pSurface, RECT lpUpdate) override
	绘制背景

BOOL	DoPaintBorder (ISurface pSurface, RECT lpUpdate) override
	绘制边框

void	CloneAttribute (CControlUI *clone) override
	克隆属性

void	ShellAttribute (const BeString &szName, const BeString &szText) override
	命令控制和属性设置接口

Public 成员函数继承自 BUI::CScrollAreaUI
	CScrollAreaUI ()

virtual	~CScrollAreaUI ()

void	OnCreate () override
	产生时间是窗口创建之后显示之前

void	OnControlSize () override
	控件尺寸改变时触发

void	GetLayoutViewRect (RECT *rc) override

void	SetBackIntervalColor (std::vector< COLORREF > &colors)

void	ResetScrollBarRange ()

void	ScrollJumpToView (RECT &rc)

void	ScrollJumpToControlUI (UINT nBar, CControlUI *child)

void	RefreshClientRect (RECT rc)

void	ScreenToClientPoint (POINT &pt) const

void	SetScrollBarUISize (int size)

void	SetEmptyTipImage (GImageIconInfo *img)

void	SetEmptyTipText (BeString text)

int	GetScrollbarPos (UINT nBar=SBF_HORZ) const

void	SetScrollbarPos (UINT nBar, int pos)

void	SetScrollbarRange (UINT nBar, int nMin, int nMax)

int	GetScrollbarRange (UINT nBar=SBF_HORZ) const

int	GetScrollDistance (UINT nBar=SBF_HORZ) const

int	GetScrollbarPage (UINT nBar=SBF_HORZ) const

BOOL	IsScrollVaild (UINT nBar=SBF_HORZ) const

void	SetScrollbarPosWithPercentage (UINT nBar, int percent)

int	GetScrollbarPercentage (UINT nBar=SBF_HORZ) const

void	SetScrollbarPosEnd (UINT nBar=SBF_HORZ)

CScrollBarUI *	GetScrollbarUI (UINT nBar=SBF_HORZ) const

void	EnableScrollBarAutoHide (BOOL enable)

void	ForbidScrollBar (UINT nBar, BOOL bBan)

void	SetScrollbarAlign (UINT nBar, AlignmentStyle uAlign)

void	UpdateScrollBarPostion (RECT *lpRect)

void	SetWheelSpeed (UINT speed)

void	DoPaintEmptyTips (ISurface pSurface, RECT &rcPaint, RECT lpUpdate)

void	ChangeThemeColors (int theme) override
	切换主题色

void	OnParseItemData (XMLItem *pNode) override
	解析xml文件对应的数据

BOOL	OnMessageHandler (UINT message, WPARAM wParam, LPARAM lParam) override
	虚拟控件最终消息处理过程

BOOL	OnMouseWheel (WPARAM wParam, LPARAM lParam) override
	鼠标滑轮消息

BOOL	OnMouseEnter (WPARAM wParam, LPARAM lParam) override
	在鼠标进入控件时触发

BOOL	OnMouseLeave (WPARAM wParam, LPARAM lParam) override

BOOL	OnHSCrollBar (WPARAM wParam, LPARAM lParam) override

BOOL	OnVSCrollBar (WPARAM wParam, LPARAM lParam) override

void	CloneAttribute (CControlUI *clone) override
	克隆属性

void	ShellAttribute (const BeString &szName, const BeString &szText) override
	命令控制和属性设置接口

Public 成员函数继承自 BUI::CControlUI
	CControlUI ()

virtual	~CControlUI ()

BOOL	Create (IManageHandler pManger, LPCTSTR strObjName, LPCTSTR strText, DWORD style, RECT rc, CControlUI parent=NULL, UINT nID=0)
	创建虚拟控件:创建过程中，会将控件加入到全局的垃圾管理机制中。用于在程序退出时，释放内存

BOOL	Create (IManageHandler pManger, LPCTSTR strObjName, LPCTSTR strText, DWORD style, int x, int y, int cx, int cy, CControlUI pPar=NULL, UINT nID=0)

void	InsertChild (CControlUI pNewChild, CControlUI pPrev)
	插入子控件

BOOL	RemoveChild (CControlUI *pChild)

BOOL	SendParentMessage (UINT message, WPARAM wParam, LPARAM lParam) const

BOOL	SendToManager (UINT message, WPARAM wParam=0, LPARAM lParam=0)

void	SendToAllChilds (UINT message, WPARAM wParam, LPARAM lParam)
	将消息传递给每一个子控件响应

void	SetEventHandler (IEventHandler *hander)
	设置消息托管

void	SetParent (CControlUI *pParent)
	设置父控件

CControlUI *	Parent () const
	父控件

CControlUI *	FirstChild () const
	第一个孩子节点

CControlUI *	LastChild () const
	最后的孩子节点

CControlUI *	NextSibling () const
	下一个兄弟节点

CControlUI *	PrevSibling () const
	上一个兄弟节点

CControlUI *	DelegaterPrev () const
	托管链表前向指针

CControlUI *	DelegaterNext () const
	托管链表后向指针

void	ModifyControlFlags (uint64_t style, UINT op=ADD_FLAGS)
	设置控件风格

uint64_t	IsHasControlFlags (uint64_t flags) const

uint64_t	GetControlFlags () const

void	SetControlNotes (BeString str)
	设置控件注释信息

BeString	GetControlNotes () const
	获得控件的注释信息

LPCTSTR	Text () const

void	SetControlText (BeString str, BOOL bRefresh=FALSE)
	设置文本

void	SetControlTextByNumber (double value, int nPrecision, BOOL remoe_last_zero)
	以数值设置文本

double	GetControlTextNumber () const
	获得文本表示的数值

void	SetAdaptMinText (BeString str)
	布局最小适应文本

void	SetVarName (const BeString &str)

void	SetVarNameA (const char *varname)

void	SetVarNameW (const WCHAR *varname)

void	SetCommitTarget (ICommitTarget *obj)
	设置数据提交对象

void	AddAbsordLayout (std::shared_ptr< ILayout > layout)

void	DelAbsordLayout (std::shared_ptr< ILayout > layout)

COLORSTYLE	GetControlColorsStyle (ColorSceneType type)
	获取颜色外观

void	SetControlColorsStyle (ColorSceneType type, COLORSTYLE colors)
	设置颜色外观

void	SetAttributeSaveNode (XMLItem *node)
	设置属性保存节点

XMLItem *	GetAttributeSaveNode () const
	获得属性保存节点

void	DoSaveAttributeToNode ()
	保存控件属性到(SetSaveNode(node))注册的节点

void	SetShadowText (int dx, int dy, int blur_x, int blur_y, GColor color)
	设置文本阴影

void	SetBorderRoundFlags (int pos, int flags)

void	SetBorderRoundSize (RoundRectRadius &radius)

void	GetRoundRadius (RoundRectRadius &ra) const

void	GetRoundRadiusWithRect (const RECT &rc, RoundRectRadius &ra) const

GShadowContain &	GetShadowContain ()
	获得阴影容器对象

GFont *	GetFont () const

void	SetFont (GFont *font)
	设置字体

void	SetFontSize (int nHeight)
	设置字体大小

void	SetBorderSize (UINT size)

void	SetPositionX (int x)

void	SetPositionY (int y)

void	SetPositionXY (int x, int y)

int	SaveAsImage (LPCTSTR outpng)
	保存控件图像为png

int	SaveAsLongImage (LPCTSTR outpng)
	保存为长图

int	Width () const

void	SetWidth (int w)

int	Height () const

void	SetHeight (int h)

void	BindAction (std::shared_ptr< IActionNotify > notify)
	绑定事件

void	ClearAction ()
	清空事件

void	TriggerAction ()
	触发事件

void	SetCaptureCtl ()
	捕获鼠标

void	ReleaseCaptureCtl ()

void	BreakAwayUITree ()
	脱离父控件树

void	SetClipZoom (int x, int y, int w, int h)
	设置控件可视裁剪区域。约束控件的显示区域

BOOL	BringBottomMost ()
	将控件移动到所有兄弟控件中的第一个

BOOL	BringTopMost ()
	将控件移动到所有兄弟控件中的最后一个

BOOL	TestOrder () const
	判断是否被其他控件遮盖 TRUE 代表遮盖

void	TipTrack (int x, int y, LPCTSTR lpSz=NULL)
	提示框显示位置 x, y 是相对窗口

void	TipHide ()

void	ShowControl (bool bShow, bool notify_layout=true)
	显示虚拟窗口

void	SetVisibleWhenMouseHover (BOOL open)
	设置只在鼠标悬停时，显示控件

BOOL	IsVisible () const
	控件在父控件中的显示状态

BOOL	IsFocused () const
	焦点状态

void	EnableControl (bool bEnable, bool refresh=true)
	TRUE:启用控件. FALSE:禁用控件

void	EnableNodeFlagControl (bool bEnable, bool refresh=true)
	nodedata包含的控件。表示node是否被禁用

BOOL	IsEnabled () const
	TRUE 代表可用

BOOL	IsBkShowTiming () const

void	SetBkShowTiming (ShowModel mode)
	背景绘制时机

void	SetBorderShowTiming (ShowModel mode)
	边框绘制时机

BOOL	IsCreateSucceed () const
	是否是成功的对象 true创建成功

BOOL	IsShortCutVaild ()

void	EnableShortCut (bool benable)

void	SetShortCut (int vKey)

void	SetShortCutCtrlCode (UBYTE vKey)

BOOL	DoShortCut (UBYTE ctrl, UBYTE vKey)

void	EnableBorderAdjustFlag (UINT alignborder=ALIGN_LEFT, bool bEnable=true)
	设置边框调整使能

void	SetToolTipText (LPCTSTR lpszTip)
	设置提示文本

void	SetToolTipText (BeString strTip)

void	SetPopTipUI (std::shared_ptr< CControlUI > popui, std::shared_ptr< PopControlInfo > popinfo)
	设置弹出pop显示ui

void	PopTipUI (BOOL bShow)
	展示pop状态

BOOL	HitTestPopUI (POINT pt)
	是否命中弹出控件

void	GetRectInScreen (LPRECT lpRect)
	获得在HWND中的绝对位置

void	SetControlMouseCursor (CursorMouse id)

void	SetFocus ()
	取得焦点和HWND焦点不要混淆，这是不一样的东西，只是函数名称我为了好记住

void	Scroll (int x, int y)
	视区的坐标原点偏移

void	Refresh (BOOL bSynch=FALSE)
	窗口失效重绘

void	RefreshThreadSafe ()
	在gui线程之外时调安全的刷新函数

void	RefreshRect (RECT *lprcUpdate)
	窗口失效重绘

void	GetDragPos (RECT *lprect) const
	窗口拖拽的原始位置

void	OnDestory ()
	控件销毁

void	UpdateAdaptLayout () const
	更新adapt布局

BOOL	MoveControl (RECT rect, BOOL bRepaint=TRUE)

BOOL	MoveControl (int x, int y, int w, int h, BOOL bRepaint=TRUE)
	移动控件位置。(x,y)代表父控件坐标空间值

void	MoveDragControl (int dx, int dy, BOOL bRepaint=TRUE)
	拖拽移动。（dx，dy）移动距离向量

void	MoveCenterByPercent (RECT *rcView, float xScale=0.5, float yScale=0.5, int w=0, int h=0, BOOL bRepaint=TRUE)
	将控件移动到以(xScale, yScale)百分比的中心点

void	ResetLayoutChilds (UINT flags=0)
	重置子布局

void	SetSkinModule (BeString &skinGroup)
	设置皮肤id

void	SetSkinStyle (BeString &skinName)
	设置皮肤id

void	SetDrawStyleWithFourCode (LPCTSTR draw_style)
	设置控件绘制的风格样式，同一种控件的表现样式可以有多种。输入值只有前四位字符有效。一个控件表现形式在实际中不会很多。不用整形的目的是增强可读性

BOOL	IsDrawStyleWithFourCode (TCHAR a='\0', TCHAR b='\0', TCHAR c='\0', TCHAR d='\0') const

void	GetSkinModule (BeStringShort64 &moduleName)

void	GetSkinStyle (BeStringShort64 &styleName)

RECT	GetControlRect () const

RECT	GetControlClientRect () const
	返回基于客户区的坐标

RECT	GetControlScreenRect () const
	返回基于屏幕的坐标

RECT	GetOppositePosition (RECT rcContainer, RECT rcChild) const
	返回rcChild相对rcrcContainer坐标系的位置

SIZE	GetStringSize (LPCTSTR str) const
	获得字符串尺寸

POINT	ViewOrigin () const
	坐标原点偏移量

ILayout *	GetAttchLayout () const
	获得管理控件自身的布局对象

ShowStatus	GetPaintStatus (bool ignoreLButton=true) const
	获得控件状态

POINT	GetClientPoint (double w_percent, double h_percent)
	获得控件坐标系下百分比的绝对位置

void	InsertGCChain (CControlUI prev, CControlUI next)

void	DeleteGCChain (CControlUI prev, CControlUI next)

CControlUI *	FindTabFocusControl (BOOL isNext) const
	获得接下来的焦点控件

void	NotifyMangerIsDestory ()
	告知管理者已销毁

IManageHandler *	GetManagerUI () const

ST_Policy *	GetSignalPolicy ()

BOOL	TranslateSyncMsg (UINT message, WPARAM wParam, LPARAM lParam)
	向上层转发同步消息

BOOL	OnMessageHandler (UINT message, WPARAM wParam, LPARAM lParam) override
	虚拟控件最终消息处理过程

int	FindChildControlByHandler (std::vector< CControlUI * > &vec, IEventHandler *handler)
	查找(通过控件的SetEventHandler()指定的事件处理对象来寻找)

int	FindAllControlByName (std::vector< CControlUI * > &vec, LPCTSTR szName, BOOL isRecursiveCall=TRUE) const
	在当前控件之下查找所有同名控件

int	FindAllControl (std::vector< CControlUI * > &vec, BOOL isRecursiveCall=TRUE) const
	获得所有子控件

CControlUI *	FindControlByName (LPCTSTR szName, BOOL isRecursiveCall=TRUE) const
	在当前控件之下查找控件

CControlUI *	GetParent () const
	获得父窗口

CControlUI *	GetParentOnTopMost () const
	获得最顶层父窗口

CControlUI *	HitTestChildControl (POINT pt) const
	定位到子控件对象

CControlUI *	NextFocusControl (BOOL isPrev=FALSE) const

void	SaveSettingConfig ()
	保存配置

virtual CControlUI *	HitTestControl (POINT pt)
	根据位置得到最终的定位控件

virtual void	GetLayoutViewRect (RECT *rc)

virtual BeString	GetControlText ()

virtual void	GetControlValueText (BasicStringBuffer &buffer)
	获得控件所表达的数据的文本，比如复选框的状态("0"/"1"),方便上层统一操作

virtual void	SetControlValueText (const BeString &str)
	设置控件所表达的数据的文本，比如复选框的状态("0"/"1"),方便上层统一操作

virtual ILayout *	BoxLayoutMgr ()
	容器布局对象

virtual void	Activate ()

virtual CControlUI *	Clone ()
	克隆对象

virtual void	ChangeThemeColors (int theme)
	切换主题色

virtual void	ShellAttribute (const BeString &szName, const BeString &szText)
	命令控制和属性设置接口

BOOL	ShellAttributeToChildControl (const BeString &childname, const BeString &szName, const BeString &szText)

virtual void	OnParseItemData (XMLItem *pNode)
	解析xml文件对应的数据

virtual void	OnSaveConfigSetting (XMLItem *node)
	保存控件属性到全局配置文件

virtual void	OnLoadConfigSetting (XMLItem *node)
	加载控件属性

virtual void	OnCreate ()
	产生时间是窗口创建之后显示之前

virtual void	OnFontChange ()
	字体更改

virtual void	OnControlSize ()
	控件尺寸改变时触发

virtual void	OnShow (bool bShow)

virtual void	OnCtrlKillFocus ()
	ui控件失去焦点

virtual void	OnCtrlSetFocus ()
	ui控件获得焦点

virtual BOOL	HitTest (POINT pt)
	点击测试

virtual BOOL	OnKillFocus (WPARAM wParam, LPARAM lParam)
	当管理的句柄HWND失去焦点时进入此函数，也就是此函数实际上是窗口 MSG_WND_KILLFOCUS的响应

virtual BOOL	OnHSCrollBar (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnVSCrollBar (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnSetCursor (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnNcHitTest (POINT pt)

virtual BOOL	OnMouseMove (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnMouseEnter (WPARAM wParam, LPARAM lParam)
	在鼠标进入控件时触发

virtual BOOL	OnMouseLeave (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnMouseWheel (WPARAM wParam, LPARAM lParam)
	鼠标滑轮消息

virtual BOOL	OnLButtonDown (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnLButtonUp (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnLButtonCliked (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnRButtonDown (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnRButtonUp (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnRButtonCliked (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnKeyDown (WPARAM wParam, LPARAM lParam)
	键盘消息

virtual BOOL	OnKeyUp (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnChar (WPARAM wParam, LPARAM lParam)

virtual BOOL	OnTimerEvent (unsigned int timerid, UINT umsec)
	定时器事件响应

virtual BOOL	OnPaintControl (ISurface *pSurface, LPRECT lprcUpdate=NULL, LPRECT lprcParentViewPort=NULL)
	lprcUpdate :控件的局部更新区域，为 NULL 表示全部更新

virtual BOOL	DoPaintShadow (ISurface pSurface, bool inset, RECT lpUpdate)
	lpUpdate 表示需要重绘的区域，这个区域的坐标表示是基于HWND窗口坐标系下的。也就是绝对位置。

virtual BOOL	DoPaintBackGround (ISurface pSurface, RECT lpUpdate)
	绘制背景

virtual BOOL	DoPaint (ISurface pSurface, RECT lpUpdate)
	绘制前景

virtual BOOL	DoPaintBorder (ISurface pSurface, RECT lpUpdate)
	绘制边框

virtual BOOL	DoPaintFinished (ISurface pSurface, RECT lpUpdate)
	绘制结束事件，极少场景需要用到

virtual BOOL	OnDropBegin ()
	鼠标拖拽开始

virtual BOOL	OnDropEnd ()
	鼠标拖拽结束

virtual void	CloneAttribute (CControlUI *clone)
	克隆属性

int	LayoutAdaptWidth (int expH) override

int	LayoutAdaptHeight (int expW) override

int	GetSplitControlOffsetW () override
	获得拆分宽度偏移

int	GetSplitControlOffsetH () override
	获得拆分高度偏移

void	Layout (int x, int y, int w, int h, UINT flags) override

bool	IsVisibleLayout () override

RECT	GetPosition () override

void	SetLauoutInfo (ILayout *parent, int w, int h, SizeMode stw, SizeMode sth)

void	ChangeManager (IManageHandler *pMagr)
	改变控件的管理对象(将抽象控件改变实际窗口的作用域)。

Public 成员函数继承自 BUI::ICommitTarget
	ICommitTarget ()

virtual	~ICommitTarget ()

virtual void	OnSummitTarget (FourCode four_code, LPCTSTR data)
	对象之间传递数据的提交操作

Public 成员函数继承自 BUI::IControlUI
	IControlUI ()

virtual	~IControlUI ()

virtual int	LayoutAdaptWidth (int expH)

virtual int	LayoutAdaptHeight (int expW)

virtual int	GetSplitControlOffsetW ()
	获得拆分宽度偏移

virtual int	GetSplitControlOffsetH ()
	获得拆分高度偏移

virtual void	Layout (int x, int y, int w, int h, UINT flags=0)

virtual RECT	GetPosition ()

virtual bool	IsVisibleLayout ()

Public 成员函数继承自 BUI::IEventHandler
	IEventHandler ()

virtual	~IEventHandler ()

virtual BOOL	OnMessageHandler (UINT message, WPARAM wp, LPARAM lp)

Protected 成员函数
void	Zoomed ()

void	DragMove (POINT pt)

void	OnChangeChildsPos ()

void	GetCloseRect (RECT *rc)

UINT	HitTestType (POINT point)

Protected 成员函数继承自 BUI::CScrollAreaUI
void	ShowChildScrollBar (BOOL show)

UINT	GetScrollStateCode () const

Protected 成员函数继承自 BUI::CControlUI
void	UpdateMarginStateFlag ()
	更新margin状态标志位

RECT	GetMarginAreaRect () const

BOOL	SetMouseCursor (CursorMouse id)
	设置系统光标

void	InsertBreakChain (CControlUI prev, CControlUI next)

void	DeleteBreakChain (CControlUI prev, CControlUI next)

void	ClientToHWNDScreen ()
	将控件坐标转换为窗口下的坐标

void	RePlotChildPos ()

void	AdjustLayoutControlSize (POINT pt)
	用户调整控件大小

BOOL	IsRedrawHovn () const

void	NotifyChildControlEnableChange (bool bEnable)
	父控件被禁用时，同步更新子控件禁用状态

void	NotifyChildControlVisableChange (bool bShow)
	父控件被隐藏时，同步更新子控件隐藏状态

Protected 属性
COLORSTYLE	m_titleBkColors

COLORSTYLE	m_titleTextColors

COLORSTYLE	m_gridColors

int	m_grid_line_spacing

UINT	m_nCaptionTextAlign

RECT	m_rcZoom

RECT	m_rcExpand

UINT	m_nCaptionHeight

UINT	m_uModel

UINT	m_uHit

int	m_uHitClick

DragMode	m_dragMode

SIZE	m_minSize

SIZE	m_maxSize

SIZE	m_szText

UINT	m_containFlags

GImageIconInfo *	m_pBkImage

MouseState	m_closeState

CBrushGradientSet	m_bkGradientBru

CBrushGradientSet	m_bkTitleGradientBru

CTimerTask	m_timer_hide_delay

Protected 属性继承自 BUI::CScrollAreaUI
int	m_nWheelSpeed

int	m_nBarWidth

CScrollBarUI *	m_pScrollHor

CScrollBarUI *	m_pScrollVer

AlignmentStyle	m_uHorBarAlign

AlignmentStyle	m_uVerBarAlign

BOOL	m_bForbidHor

BOOL	m_bForbidVer

BOOL	m_bDisplayBarWhenMouseEnters

CNodeDataLists	m_nodeListWhenEmpty

std::vector< COLORREF >	m_back_interval_colors

Protected 属性继承自 BUI::CControlUI
IEventHandler *	m_eventHandler

BeString	m_strText

BeString	m_skinModuleName

BeString	m_skinStyleName

BeString	m_strCaptureFile

BeString	m_strNotes

Location	m_locationinfo

POINT	m_ptViewOrigin

RECT	m_rcTrackDrag

RECT	m_rcChipZoom

RECT *	m_pRectClipParent

COLORSTYLE	m_bgColors

COLORSTYLE	m_fgColors

COLORSTYLE	m_textColors

COLORSTYLE	m_borderColors

RoundRectRadius	m_RoundRadius

UBYTE	m_roundRadiusFlags

MarginInfo	m_marginOnHover

CursorMouse	m_idCursor

GFont *	m_pFont

uint64_t	m_nCtlFlags

UINT	m_borderSize

ICommitTarget *	m_commit_target

FourCode	m_draw_style

BeString	m_popTipText

std::shared_ptr< CControlUI >	m_popBoxUI

std::shared_ptr< PopControlInfo >	m_popUser

ActionList	m_action

std::vector< std::shared_ptr< ILayout > >	m_absord_uis

ST_Policy	m_sigPolicy

syntax_info *	m_cmd_ast

XMLItem *	m_save_node

BeString	m_strMinAdapter

ILayout *	m_pCtrlOfLayout

GShadowContain	m_shadow_contain

ShadowInfo *	m_shadow_text

UBYTE	m_vKeyCtrl

UBYTE	m_vKeyCode

UBYTE	m_uHitFlag

UBYTE	m_uVisible
	全部为0代表可见 bit0: 表示控件自身的可视状态 bit1: 表示父控件的可视状态 bit2: 表示鼠标进入时才有可视状态

UBYTE	m_uEnable
	全部为0代表可用 bit0 表示控件自身的可用状态 bit1 表示父控件的禁用状态 bit2: nodecell禁用状态

UBYTE	m_bkShowTiming
	ShowModel OnNever 从不绘制 OnAlways 一直绘制 OnHighLight 高亮时绘制

UBYTE	m_borderShowTiming

UBYTE	m_key_down

额外继承的成员函数
静态 Public 成员函数继承自 BUI::CControlUI
static void	ChangeParent (CControlUI pThis, CControlUI pNewpar, CControlUI *pAfterchild)

static void	ParseShortCutText (const char *text, UINT &vCtrl, UINT &vKey)
	解析快捷键

static BeString	ConvertShortCutCodeToText (UINT vCtrl, UINT vKey)
	快捷键转换为字符串

Public 属性继承自 BUI::CControlUI
BeString	m_strVarName

UINT	m_nID

IManageHandler *	m_pMangerUI

CControlUI *	m_pParent

CControlUI *	m_pFirstChild

CControlUI *	m_pLastChild

CControlUI *	m_pNextSibling

CControlUI *	m_pPrevSibling

CControlUI *	m_gc_prev_

CControlUI *	m_gc_next_

CControlUI *	m_break_prev_

CControlUI *	m_break_next_

RECT	m_rcAbsolute

静态 Protected 成员函数继承自 BUI::CControlUI
static UBYTE	ReturnBitFlag (UBYTE value, UINT bit_pos, BOOL bEnable)

详细描述

无布局功能的容器类,控件的位置全靠用户的绝对位置来确定。改变控件位置，需要开发者控制。

构造及析构函数说明

◆ CContainerUI()

BUI::CContainerUI::CContainerUI ( )

◆ ~CContainerUI()

BUI::CContainerUI::~CContainerUI ( )

成员函数说明

◆ ChangeThemeColors()

void BUI::CContainerUI::ChangeThemeColors ( int theme )

overridevirtual

切换主题色

重载 BUI::CControlUI .

被 BUI::CTipBoxUI 重载.

◆ CloneAttribute()

void BUI::CContainerUI::CloneAttribute ( CControlUI * clone )

overridevirtual

克隆属性

重载 BUI::CControlUI .

被 BUI::CContainLayoutUI , 以及 BUI::CLayoutArrowContainUI 重载.

◆ DoModal()

UINT BUI::CContainerUI::DoModal ( int nMesc = 0 )

◆ DoPaint()

BOOL BUI::CContainerUI::DoPaint	(	ISurface *	pSurface,
		RECT *	lpUpdate
	)

overridevirtual

绘制前景

重载 BUI::CControlUI .

被 BUI::CNodeDataListUI, BUI::CLayoutArrowContainUI , 以及 BUI::CContainMenuUI 重载.

◆ DoPaintBackGround()

BOOL BUI::CContainerUI::DoPaintBackGround	(	ISurface *	pSurface,
		RECT *	lpUpdate
	)

overridevirtual

绘制背景

重载 BUI::CControlUI .

被 BUI::CLayoutArrowContainUI 重载.

◆ DoPaintBorder()

BOOL BUI::CContainerUI::DoPaintBorder	(	ISurface *	pSurface,
		RECT *	lpUpdate
	)

overridevirtual

绘制边框

重载 BUI::CControlUI .

被 BUI::CLayoutArrowContainUI 重载.

◆ DragMove()

void BUI::CContainerUI::DragMove ( POINT pt )

protected

◆ GetCaptionHeight()

int BUI::CContainerUI::GetCaptionHeight ( BOOL display = TRUE )

◆ GetChildMaxViewSize()

SIZE BUI::CContainerUI::GetChildMaxViewSize ( ) const

获得所有子控件的可见范围

◆ GetCloseRect()

void BUI::CContainerUI::GetCloseRect ( RECT * rc )

protected

◆ HitTestType()

UINT BUI::CContainerUI::HitTestType ( POINT point )

protected

◆ IsHasContainerFlags()

UINT BUI::CContainerUI::IsHasContainerFlags ( UINT flags ) const

◆ ModifyContainerFlags()

void BUI::CContainerUI::ModifyContainerFlags	(	UINT	style,
		UINT	op = `ADD_FLAGS`
	)

设置容器控件特有属性标志

参数

style	取ContainerFlag组合值
op	ADD_FLAGS(添加属性) REMOVE_FLAGS(删除属性)

◆ OnChangeChildsPos()

void BUI::CContainerUI::OnChangeChildsPos ( )

protected

◆ OnControlSize()

void BUI::CContainerUI::OnControlSize ( )

overridevirtual

控件尺寸改变时触发

重载 BUI::CControlUI .

被 BUI::CContainMenuUI 重载.

◆ OnHSCrollBar()

BOOL BUI::CContainerUI::OnHSCrollBar	(	WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::CControlUI .

◆ OnLButtonCliked()

BOOL BUI::CContainerUI::OnLButtonCliked	(	WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::CControlUI .

◆ OnLButtonDown()

BOOL BUI::CContainerUI::OnLButtonDown	(	WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::CControlUI .

◆ OnLButtonUp()

BOOL BUI::CContainerUI::OnLButtonUp	(	WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::CControlUI .

被 BUI::CContainMenuUI , 以及 BUI::CNodeEditorUI 重载.

◆ OnMessageHandler()

BOOL BUI::CContainerUI::OnMessageHandler	(	UINT	message,
		WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::IEventHandler .

被 BUI::CNodeDataListUI, BUI::CContainLayoutUI, BUI::CAutoMoveContainUI, BUI::CTipBoxUI, BUI::CContainMenuUI, BUI::CContainOptionUI , 以及 BUI::CContainScrollSyncUI 重载.

◆ OnMouseLeave()

BOOL BUI::CContainerUI::OnMouseLeave	(	WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::CControlUI .

◆ OnMouseMove()

BOOL BUI::CContainerUI::OnMouseMove	(	WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::CControlUI .

◆ OnNcHitTest()

BOOL BUI::CContainerUI::OnNcHitTest ( POINT pt )

overridevirtual

重载 BUI::CControlUI .

◆ OnVSCrollBar()

BOOL BUI::CContainerUI::OnVSCrollBar	(	WPARAM	wParam,
		LPARAM	lParam
	)

overridevirtual

重载 BUI::CControlUI .

◆ SetBkImage()

void BUI::CContainerUI::SetBkImage ( GImageIconInfo * img )

◆ SetCaptionHeight()

void BUI::CContainerUI::SetCaptionHeight ( int h )

◆ SetDragType()

void BUI::CContainerUI::SetDragType ( DragMode type )

◆ ShellAttribute()

void BUI::CContainerUI::ShellAttribute	(	const BeString &	szName,
		const BeString &	szText
	)

overridevirtual

命令控制和属性设置接口

szName属性	szText语法格式
back-image 背景填充图	back-image="资源标识符"
contain-flags 容器功能标志位	"-"前缀代表删除属性如 contain-flags="showCaption,-EnableZoom"
	MainContain :主容器和普通容器应用的主题色不同
	showCaption :是否展示title标题栏
	showExpand :显示标题栏折叠按钮。默认不显示
	adaptCaptionHeight :显示标题栏折叠按钮。默认不显示
	EnableChangeSize :用户无法调整容器尺寸
	EnableZoom :是否显示最大最小化按钮
	ShowCloseBtn :是否显示关闭按钮
	DragMoveWidget : 窗口移动
	bkImgFullFill : 背景图是否铺满
	ShowGridStandard : 显示水平垂直的标准化网格线
	ShowGridBlock : 显示网格间隔填充模式
	GroupLineStyle: 静态分组线样式
	HideAfterDelay：在一段延时之后隐藏自己

drag 控件拖拽移动属性	none :不移动
	title :拖拽标题栏时移动
	anywhere :拖拽任意位置移动

title-text-align 标题栏文本对齐方式	title-text-align="hcenter,vcenter"
grid-colors 背景禁用渐变色	title-gradient-disable="资源标识符"
grid-line-spacing 背景禁用渐变色	title-gradient-disable="资源标识符"
hide-delay 背景禁用渐变色	title-gradient-disable="资源标识符"
title-back-colors 背景禁用渐变色	title-gradient-disable="资源标识符"
title-text-colors 背景禁用渐变色	title-gradient-disable="资源标识符"
title-text-align 背景禁用渐变色	title-gradient-disable="资源标识符"
back-gradient 背景渐变色	back-gradient="normal:资源标识符;light:资源标识符;selected:资源标识符;disable:资源标识符"
back-gradient-normal 背景常规状态渐变色	back-gradient-normal="资源标识符"
back-gradient-light 背景高亮状态渐变色	back-gradient-light="资源标识符"
back-gradient-selected 背景选中状态渐变色	back-gradient-selected="资源标识符"
back-gradient-disable 背景禁用渐变色	back-gradient-disable="资源标识符"

title-gradient 标题栏渐变色	title-gradient="normal:资源标识符;light:资源标识符;selected:资源标识符;disable:资源标识符"
title-gradient-normal 背景常规状态渐变色	title-gradient-normal="资源标识符"
title-gradient-light 背景高亮状态渐变色	title-gradient-light="资源标识符"
title-gradient-selected 背景选中状态渐变色	title-gradient-selected="资源标识符"
title-gradient-disable 背景禁用渐变色	title-gradient-disable="资源标识符"

重载 BUI::CControlUI .

被 BUI::CContainLayoutUI, BUI::CAutoMoveContainUI, BUI::CLayoutArrowContainUI, BUI::CContainMenuUI, BUI::CContainOptionUI, BUI::CContainScrollSyncUI , 以及 BUI::CNodeEditorUI 重载.

◆ UpdateHideDelayMs()

void BUI::CContainerUI::UpdateHideDelayMs ( int ms )

◆ Zoomed()

void BUI::CContainerUI::Zoomed ( )

protected

类成员变量说明

◆ m_bkGradientBru

CBrushGradientSet BUI::CContainerUI::m_bkGradientBru

protected

◆ m_bkTitleGradientBru

CBrushGradientSet BUI::CContainerUI::m_bkTitleGradientBru

protected

◆ m_closeState

MouseState BUI::CContainerUI::m_closeState

protected

◆ m_containFlags

UINT BUI::CContainerUI::m_containFlags

protected

◆ m_dragMode

DragMode BUI::CContainerUI::m_dragMode

protected

◆ m_grid_line_spacing

int BUI::CContainerUI::m_grid_line_spacing

protected

◆ m_gridColors

COLORSTYLE BUI::CContainerUI::m_gridColors

protected

◆ m_maxSize

SIZE BUI::CContainerUI::m_maxSize

protected

◆ m_minSize

SIZE BUI::CContainerUI::m_minSize

protected

◆ m_nCaptionHeight

UINT BUI::CContainerUI::m_nCaptionHeight

protected

◆ m_nCaptionTextAlign

UINT BUI::CContainerUI::m_nCaptionTextAlign

protected

◆ m_pBkImage

GImageIconInfo* BUI::CContainerUI::m_pBkImage

protected

◆ m_rcExpand

RECT BUI::CContainerUI::m_rcExpand

protected

◆ m_rcZoom

RECT BUI::CContainerUI::m_rcZoom

protected

◆ m_szText

SIZE BUI::CContainerUI::m_szText

protected

◆ m_timer_hide_delay

CTimerTask BUI::CContainerUI::m_timer_hide_delay

protected

◆ m_titleBkColors

COLORSTYLE BUI::CContainerUI::m_titleBkColors

protected

◆ m_titleTextColors

COLORSTYLE BUI::CContainerUI::m_titleTextColors

protected

◆ m_uHit

UINT BUI::CContainerUI::m_uHit

protected

◆ m_uHitClick

int BUI::CContainerUI::m_uHitClick

protected

◆ m_uModel

UINT BUI::CContainerUI::m_uModel

protected

Public 成员函数

Protected 成员函数

Protected 属性

额外继承的成员函数

详细描述

构造及析构函数说明

◆ CContainerUI()

◆ ~CContainerUI()

成员函数说明

◆ ChangeThemeColors()

◆ CloneAttribute()

◆ DoModal()

◆ DoPaint()

◆ DoPaintBackGround()

◆ DoPaintBorder()

◆ DragMove()

◆ GetCaptionHeight()

◆ GetChildMaxViewSize()

◆ GetCloseRect()

◆ HitTestType()

◆ IsHasContainerFlags()

◆ ModifyContainerFlags()

◆ OnChangeChildsPos()

◆ OnControlSize()

◆ OnHSCrollBar()

◆ OnLButtonCliked()

◆ OnLButtonDown()

◆ OnLButtonUp()

◆ OnMessageHandler()

◆ OnMouseLeave()

◆ OnMouseMove()

◆ OnNcHitTest()

◆ OnVSCrollBar()

◆ SetBkImage()

◆ SetCaptionHeight()

◆ SetDragType()

◆ ShellAttribute()

◆ UpdateHideDelayMs()

◆ Zoomed()

类成员变量说明

◆ m_bkGradientBru

◆ m_bkTitleGradientBru

◆ m_closeState

◆ m_containFlags

◆ m_dragMode

◆ m_grid_line_spacing

◆ m_gridColors

◆ m_maxSize

◆ m_minSize

◆ m_nCaptionHeight

◆ m_nCaptionTextAlign

◆ m_pBkImage

◆ m_rcExpand

◆ m_rcZoom

◆ m_szText

◆ m_timer_hide_delay

◆ m_titleBkColors

◆ m_titleTextColors

◆ m_uHit

◆ m_uHitClick

◆ m_uModel
