BUI::CNodeData类 参考

可视化的数据结构，包含数据交互和绘制功能 更多...

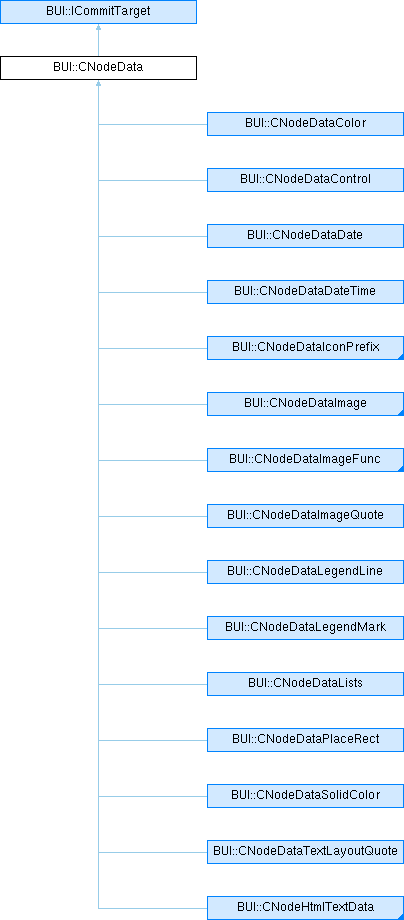

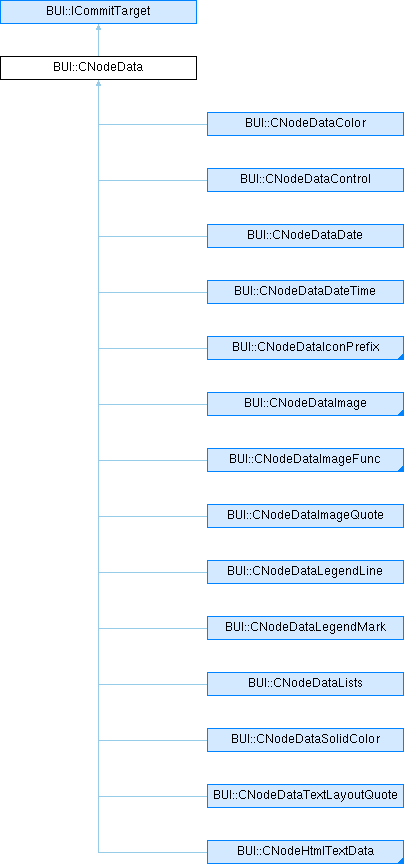

类 BUI::CNodeData 继承关系图:

Public 成员函数
	CNodeData ()
virtual	~CNodeData ()
virtual int	ChildCounts ()
virtual std::shared_ptr< CNodeData >	GetChildNode (int pos)
virtual void	OnDrawNodeData (ISurface *surface, int paint_state, RECT rc_cell, const GColor &color_text, UINT align, PathTransInfo *clip_path=NULL)
virtual void	GetPrintText (BasicStringBufferA &str)
	获得打印字符串
virtual void	NodeDataToEditor (BeString &str)
	传入编辑器显示的文本. node --> editor
virtual void	EditorToNodeData (const BeString &str)
	接收编辑器传来的数据. editor --> node
virtual int	Compare (LPCTSTR text, BOOL ignore_case=FALSE)
	比较内容文本
virtual void	GetValueData (DataType type, ValuePack &sort_data)
	获取数据值,也可用于排序
virtual void	SetElementLayout (int w, int h, LayoutMode mw, LayoutMode mh)
	设置布局信息
virtual void	GetElementLayout (ElementLayout &ele)
	获得布局信息
virtual UINT	GetNodeAdaptWidth (const GFont *font)
	获得布局自适应宽度
virtual UINT	GetNodeAdaptHeight (const GFont *font)
virtual void	OnSaveConfigSetting (XMLItem *node)
	保存控件属性
virtual void	OnParseNodeData (XMLItem *node, CControlUI *parent)
virtual void	ShellNodeDataAttribute (const BeString &str_name, const BeString &str_value)
virtual void	SetClipRect (RECT &rc)
	设置可视化区域
virtual void	OnTranslateLanguage ()
	翻译
virtual CControlUI *	HitTestCellControl (POINT pt)
	定位控件
virtual CControlUI *	FindCellControl (LPCTSTR name)
virtual BOOL	AddChildNodeData (std::shared_ptr< CNodeData > valuedata)
	添加子node
virtual BOOL	InsertChildNodeData (int pos, std::shared_ptr< CNodeData > valuedata)
virtual BOOL	RemoveChildNodeData (int pos)
SIZE	GetElementLayoutSize (ElementLayout &ele, int par_w, int par_h, const GFont *font)
void	StorageNodeAdaptWidth (UINT size)
void	StorageNodeAdaptHeight (UINT size)
void	DrawNodeTextW (ISurface *surface, int paint_state, RECT rc_cell, const GColor &color_text, UINT text_align, LPCWSTR text, int length)
void	DrawNodeTextA (ISurface *surface, int paint_state, RECT rc_cell, const GColor &color_text, UINT text_align, LPCSTR text, int length)
void	OnSummitTarget (FourCode four_code, LPCTSTR data) override
	对象之间传递数据的提交操作
Public 成员函数 继承自 BUI::ICommitTarget
	ICommitTarget ()
virtual	~ICommitTarget ()

Protected 属性
std::shared_ptr< ElementLayout >	m_obj_layout

详细描述

可视化的数据结构，包含数据交互和绘制功能

构造及析构函数说明

CNodeData()

BUI::CNodeData::CNodeData

(

)

~CNodeData()

virtual BUI::CNodeData::~CNodeData ( )

virtual

成员函数说明

AddChildNodeData()

virtual BOOL BUI::CNodeData::AddChildNodeData ( std::shared_ptr< CNodeData > valuedata )

virtual

添加子node

被 BUI::CNodeDataLists 重载.

ChildCounts()

virtual int BUI::CNodeData::ChildCounts ( )

virtual

被 BUI::CNodeDataLists 重载.

Compare()

virtual int BUI::CNodeData::Compare ( LPCTSTR text, BOOL ignore_case = FALSE )

virtual

比较内容文本

被 BUI::CNodeDataLists , 以及 BUI::CNodeDataText 重载.

DrawNodeTextA()

void BUI::CNodeData::DrawNodeTextA	(	ISurface *	surface,
		int	paint_state,
		RECT	rc_cell,
		const GColor &	color_text,
		UINT	text_align,
		LPCSTR	text,
		int	length )

DrawNodeTextW()

void BUI::CNodeData::DrawNodeTextW	(	ISurface *	surface,
		int	paint_state,
		RECT	rc_cell,
		const GColor &	color_text,
		UINT	text_align,
		LPCWSTR	text,
		int	length )

EditorToNodeData()

virtual void BUI::CNodeData::EditorToNodeData ( const BeString & str )

virtual

接收编辑器传来的数据. editor --> node

被 BUI::CNodeDataColor, BUI::CNodeDataControl, BUI::CNodeDataDate, BUI::CNodeDataDateTime, BUI::CNodeDataDouble, BUI::CNodeDataDoubleQuote, BUI::CNodeDataImage, BUI::CNodeDataImageQuote, BUI::CNodeDataInt, BUI::CNodeDataIntQuote, BUI::CNodeDataLists, BUI::CNodeDataText, BUI::CNodeDataTextLayoutQuote, BUI::CNodeDataTextQuote , 以及 BUI::CNodeHtmlTextData 重载.

FindCellControl()

virtual CControlUI * BUI::CNodeData::FindCellControl ( LPCTSTR name )

virtual

被 BUI::CNodeDataControl , 以及 BUI::CNodeDataLists 重载.

GetChildNode()

virtual std::shared_ptr< CNodeData > BUI::CNodeData::GetChildNode ( int pos )

virtual

被 BUI::CNodeDataLists 重载.

GetElementLayout()

virtual void BUI::CNodeData::GetElementLayout ( ElementLayout & ele )

virtual

获得布局信息

GetElementLayoutSize()

SIZE BUI::CNodeData::GetElementLayoutSize	(	ElementLayout &	ele,
		int	par_w,
		int	par_h,
		const GFont *	font )

GetNodeAdaptHeight()

virtual UINT BUI::CNodeData::GetNodeAdaptHeight ( const GFont * font )

virtual

被 BUI::CNodeDataControl, BUI::CNodeDataImage, BUI::CNodeDataImageFunc, BUI::CNodeDataImageQuote, BUI::CNodeDataLists, BUI::CNodeDataText, BUI::CNodeDataTextAlign, BUI::CNodeDataTextLayoutQuote , 以及 BUI::CNodeDataTextQuote 重载.

GetNodeAdaptWidth()

virtual UINT BUI::CNodeData::GetNodeAdaptWidth ( const GFont * font )

virtual

获得布局自适应宽度

被 BUI::CNodeDataControl, BUI::CNodeDataImage, BUI::CNodeDataImageFunc, BUI::CNodeDataImageQuote, BUI::CNodeDataLists, BUI::CNodeDataText, BUI::CNodeDataTextAlign, BUI::CNodeDataTextLayoutQuote , 以及 BUI::CNodeDataTextQuote 重载.

GetPrintText()

virtual void BUI::CNodeData::GetPrintText ( BasicStringBufferA & str )

virtual

获得打印字符串

被 BUI::CNodeDataColor, BUI::CNodeDataDate, BUI::CNodeDataDateTime, BUI::CNodeDataDouble, BUI::CNodeDataDoubleQuote, BUI::CNodeDataImageFunc, BUI::CNodeDataInt, BUI::CNodeDataIntQuote, BUI::CNodeDataLists, BUI::CNodeDataText, BUI::CNodeDataTextLayoutQuote, BUI::CNodeDataTextQuote , 以及 BUI::CNodeHtmlTextData 重载.

GetValueData()

virtual void BUI::CNodeData::GetValueData ( DataType type, ValuePack & sort_data )

virtual

获取数据值,也可用于排序

被 BUI::CNodeDataColor, BUI::CNodeDataControl, BUI::CNodeDataDate, BUI::CNodeDataDateTime, BUI::CNodeDataDouble, BUI::CNodeDataDoubleQuote, BUI::CNodeDataImage, BUI::CNodeDataImageQuote, BUI::CNodeDataInt, BUI::CNodeDataIntQuote, BUI::CNodeDataLists, BUI::CNodeDataText, BUI::CNodeDataTextLayoutQuote, BUI::CNodeDataTextQuote , 以及 BUI::CNodeHtmlTextData 重载.

HitTestCellControl()

virtual CControlUI * BUI::CNodeData::HitTestCellControl ( POINT pt )

virtual

定位控件

被 BUI::CNodeDataControl , 以及 BUI::CNodeDataLists 重载.

InsertChildNodeData()

virtual BOOL BUI::CNodeData::InsertChildNodeData ( int pos, std::shared_ptr< CNodeData > valuedata )

virtual

被 BUI::CNodeDataLists 重载.

NodeDataToEditor()

virtual void BUI::CNodeData::NodeDataToEditor ( BeString & str )

virtual

传入编辑器显示的文本. node --> editor

被 BUI::CNodeDataColor, BUI::CNodeDataControl, BUI::CNodeDataDate, BUI::CNodeDataDateTime, BUI::CNodeDataDouble, BUI::CNodeDataDoubleQuote, BUI::CNodeDataImage, BUI::CNodeDataImageQuote, BUI::CNodeDataInt, BUI::CNodeDataIntQuote, BUI::CNodeDataLists, BUI::CNodeDataText, BUI::CNodeDataTextLayoutQuote, BUI::CNodeDataTextQuote , 以及 BUI::CNodeHtmlTextData 重载.

OnDrawNodeData()

virtual void BUI::CNodeData::OnDrawNodeData ( ISurface * surface, int paint_state, RECT rc_cell, const GColor & color_text, UINT align, PathTransInfo * clip_path = NULL )

virtual

被 BUI::CNodeDataBarOfPercent, BUI::CNodeDataColor, BUI::CNodeDataControl, BUI::CNodeDataDate, BUI::CNodeDataDateTime, BUI::CNodeDataDouble, BUI::CNodeDataDoubleQuote, BUI::CNodeDataEnum, BUI::CNodeDataEnumText, BUI::CNodeDataImage, BUI::CNodeDataImageFunc, BUI::CNodeDataImageGradient, BUI::CNodeDataImageQuote, BUI::CNodeDataInt, BUI::CNodeDataIntQuote, BUI::CNodeDataLegendLine, BUI::CNodeDataLegendMark, BUI::CNodeDataLists, BUI::CNodeDataSolidColor, BUI::CNodeDataText, BUI::CNodeDataTextAlign, BUI::CNodeDataTextGradient, BUI::CNodeDataTextGradientQuote, BUI::CNodeDataTextLayoutQuote, BUI::CNodeDataTextQuote , 以及 BUI::CNodeHtmlTextData 重载.

OnParseNodeData()

virtual void BUI::CNodeData::OnParseNodeData ( XMLItem * node, CControlUI * parent )

virtual

被 BUI::CNodeDataControl, BUI::CNodeDataLists , 以及 BUI::CNodeHtmlTextData 重载.

OnSaveConfigSetting()

virtual void BUI::CNodeData::OnSaveConfigSetting ( XMLItem * node )

virtual

保存控件属性

被 BUI::CNodeDataText 重载.

OnSummitTarget()

void BUI::CNodeData::OnSummitTarget ( FourCode four_code, LPCTSTR data )

overridevirtual

对象之间传递数据的提交操作

参数

four_code	由四个字符组合而成的类型符号
data	额外字符串数据。可以是纯字符串，可以是json文本，可以是任意格式的数据流

重载 BUI::ICommitTarget .

OnTranslateLanguage()

virtual void BUI::CNodeData::OnTranslateLanguage ( )

virtual

翻译

被 BUI::CNodeDataLists, BUI::CNodeDataText , 以及 BUI::CNodeHtmlTextData 重载.

RemoveChildNodeData()

virtual BOOL BUI::CNodeData::RemoveChildNodeData ( int pos )

virtual

被 BUI::CNodeDataLists 重载.

SetClipRect()

virtual void BUI::CNodeData::SetClipRect ( RECT & rc )

virtual

设置可视化区域

被 BUI::CNodeDataControl 重载.

SetElementLayout()

virtual void BUI::CNodeData::SetElementLayout ( int w, int h, LayoutMode mw, LayoutMode mh )

virtual

设置布局信息

ShellNodeDataAttribute()

virtual void BUI::CNodeData::ShellNodeDataAttribute ( const BeString & str_name, const BeString & str_value )

virtual

被 BUI::CNodeDataColor, BUI::CNodeDataControl, BUI::CNodeDataDate, BUI::CNodeDataDateTime, BUI::CNodeDataDouble, BUI::CNodeDataIconPrefix, BUI::CNodeDataImage, BUI::CNodeDataImageGradient, BUI::CNodeDataInt, BUI::CNodeDataLegendLine, BUI::CNodeDataLegendMark, BUI::CNodeDataLists, BUI::CNodeDataSolidColor, BUI::CNodeDataText, BUI::CNodeDataTextAlign , 以及 BUI::CNodeHtmlTextData 重载.

StorageNodeAdaptHeight()

void BUI::CNodeData::StorageNodeAdaptHeight

(

UINT

size

)

StorageNodeAdaptWidth()

void BUI::CNodeData::StorageNodeAdaptWidth

(

UINT

size

)

类成员变量说明

m_obj_layout

std::shared_ptr<ElementLayout> BUI::CNodeData::m_obj_layout

protected
