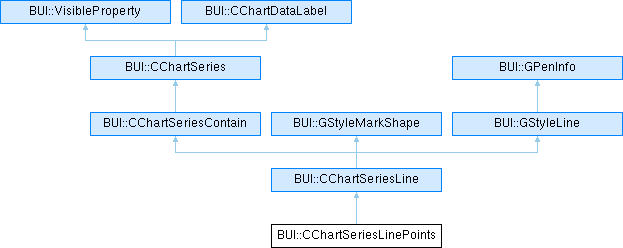

类 BUI::CChartSeriesLinePoints 继承关系图:

Public 成员函数
	CChartSeriesLinePoints ()

virtual	~CChartSeriesLinePoints ()

void	SetDownSample (int sample)
	设置降采样步长。即每sample个点降为1个点。最后的显示数据长度=实际数据长度/sample。

void	SetDownSampleUnit (int sample_unit)
	自动降采样时,此变量用于对采样率取下整。注意:仅在自动计算降采样时有效。

void	SetFirstPos (int pos)
	设置当前显示数据起点位置。

void	SetValue1Offset (float dv1)
	设置v1数组中，每一个值的偏移量。相当于整体平移

void	SetValue2Offset (float dv2)
	设置v2数组中，每一个值的偏移量。相当于整体平移

void	ClearPoints (BOOL clear_v1=TRUE)
	清空数据

void	InitVector1Data (int count, float begin, float step)
	初始化第一组数据

void	AppendValuePair (double v1, double v2, BOOL check_range=TRUE)
	添加数据点(v1,v2)。注意:AppendValuePair不可以和（AppendValue2，AppendValue2ByArray）同时使用。

BOOL	AppendValue2 (double v2, BOOL isMark=FALSE, BOOL check_range=TRUE)
	添加数据点的v2值

BOOL	AppendValue2ByArray (double *v2, int count, BOOL check_range=TRUE)
	添加多个数据点的v2值

std::vector< float > &	GetValue2Points (int back_idx)
	获得第二个坐标轴指定缓冲的数组引用(非线程安全，但是无拷贝开销)

void	CopyValue2Points (std::vector< float > &vec, int back_idx)
	拷贝第二个坐标轴指定缓冲的数组引用（线程安全，但有O(n)拷贝开销）

void	SetCapacity (int count)
	设置可容纳点数量的最大值

void	GetRangeY (DataRangeHelper &range) const
	获得当前可视下v2的范围

void	OnPaintSeries (ISurface pSurface, const RECT &rcDiagram, RECT lpUpdate) override

void	OnSizeChanged () override

void	ShellSeriesAttribute (const BeString &szName, const BeString &szText, ICoordList *crdlist) override
	命令控制和属性设置接口

Public 成员函数继承自 BUI::CChartSeriesLine
	CChartSeriesLine ()

virtual	~CChartSeriesLine ()

void	UpdateRandomData (double low, double hight)

void	SetLinePatternImage (GImage *img)
	设置线条图案

void	SelectShadow (int dx, int dy, int blur_x, int blur_y, int spread_x, int spread_y, GColor color)

void	OnPaintSeries (ISurface pSurface, const RECT &rcDiagram, RECT lpUpdate) override

BOOL	OnNotifyMessage (IEventHandler *notify, UINT message, WPARAM wp, LPARAM lp) override

void	ShellSeriesAttribute (const BeString &szName, const BeString &szText, ICoordList *crdlist) override
	命令控制和属性设置接口

void	OnParseItemData (XMLItem pNode, ICoordList crdlist) override

Public 成员函数继承自 BUI::CChartSeriesContain
	CChartSeriesContain ()

virtual	~CChartSeriesContain ()

std::shared_ptr< CChartElement >	At (int i, BOOL reverse=FALSE)
	获得位置i的元素对象

template<class ElementType >
ElementType *	Find (int i, BOOL reverse=FALSE)

void	Add (std::shared_ptr< CChartElement > ele)

void	Insert (int pos, std::shared_ptr< CChartElement > ele)

void	Delete (int pos, int count=1)

void	Clear ()

void	MoveFirstEleToEnd ()
	将第一个元素移动到末尾

void	GetValueY (std::vector< double > &vec, int field=0)
	获得Y轴数据数组

int	Size () const
	图元总数

void	ConvToPath (GPathStorage *path, LineMode mode, BOOL isReverse, int field=0)

void	OnPaintSeries (ISurface pSurface, const RECT &rcDiagram, RECT lpUpdate) override

BOOL	OnNotifyMessage (IEventHandler *notify, UINT message, WPARAM wp, LPARAM lp) override

void	OnParseItemData (XMLItem pNode, ICoordList crdlist) override

CChartElement *	FindChartElement (LPCTSTR name) override

void	OnTranslateLanguage () override

void	ChangeThemeColors () override

Public 成员函数继承自 BUI::CChartSeries
	CChartSeries ()

virtual	~CChartSeries ()

LPCTSTR	SeriesName ()
	序列名称

void	SetSeriesName (LPCTSTR name)
	设置序列名称

void	SetSeriesID (UINT id)
	设置序列整数ID

UINT	SeriesID () const
	获取序列整数ID

BOOL	IsEnable () const
	可用性

void	SetEnable (BOOL enable)
	设置可用性

virtual void	OnTranslateLanguage ()

virtual void	ChangeThemeColors ()

virtual void	OnSizeChanged ()

virtual void	OnPaintSeries (ISurface pSurface, const RECT &rcDiagram, RECT lpUpdate)

virtual BOOL	OnNotifyMessage (IEventHandler *notify, UINT message, WPARAM wp, LPARAM lp)

virtual void	ShellSeriesAttribute (const BeString &szName, const BeString &szText, ICoordList *crdlist)
	命令控制和属性设置接口

virtual void	OnParseItemData (XMLItem pNode, ICoordList crdlist)

virtual CChartElement *	FindChartElement (LPCTSTR name)

Public 成员函数继承自 BUI::VisibleProperty
	VisibleProperty ()

	~VisibleProperty ()

BOOL	IsVisable () const

void	SetVisable (BOOL bShow)

Public 成员函数继承自 BUI::CChartDataLabel
	CChartDataLabel ()

	~CChartDataLabel ()

BOOL	IsShowDataLabel () const

void	ShowDataLabelLine (BOOL bShow)

BOOL	IsShowDataLabelLine () const

void	SetDataLabelBgColor (const GColor &color)

void	SetEleColor (const GColor &color)

void	ShowDataLabel (BOOL bShow)

void	SetDatalabelTextDistance (double r)

void	SetDatalabelAngle (double rad)

void	SetDatalabelAngleDeg (double deg)

Public 成员函数继承自 BUI::GStyleMarkShape
	GStyleMarkShape ()

	~GStyleMarkShape ()

void	SetMarkStyle (TypeMarkShape style)

void	SetMarkSize (double marksize)

void	SetMarkColor (const GColor &color)

TypeMarkShape	GetMarkStyle () const

double	GetMarkSize () const

GColor	GetMarkColor () const

void	OnPaintMarkShape (ISurface pSurface, int cx, int cy, const RECT &rcDiagram, RECT rcClip)

void	OnPaintMarkShape (ISurface pSurface, int cx, int cy, int size, const RECT &rcDiagram, RECT rcClip)

BOOL	OnPtInMarkShape (POINT pt, int cx, int cy)

void	ShellMarkAttribute (const BeString &szName, const BeString &szText)

Public 成员函数继承自 BUI::GStyleLine
	GStyleLine ()

	~GStyleLine ()

BOOL	IsFillAreaPath () const

void	FillAreaPath (BOOL bFill)

void	SetLineMode (LineMode mode)

LineMode	GetLineMode () const

Public 成员函数继承自 BUI::GPenInfo
	GPenInfo ()

	~GPenInfo ()

void	SetLineColor (GColor color)
	设置线颜色

void	SetLineType (PenType style)
	设置画笔类型

void	SetLineWidth (int weight)
	设置线宽

float	GetLineWidth (BOOL display=TRUE) const
	获得线宽

GColor	GetLineColor () const
	画笔颜色

PenType	GetLineType () const
	画笔类型

void	ShellAttributePen (const BeString &szName, const BeString &szText)
	属性设置

Protected 属性
CChartCoordinate *	m_coord_obj

AtomicLock	m_mutex_running

int	m_point_max_count

int	m_first_pos_v2 [2]

BOOL	m_is_realtime

BOOL	m_is_x_by_index

float	m_x_step

std::vector< float >	m_v1

std::vector< float >	m_v2 [2]

std::vector< VecFloat2 >	m_v2_mark [2]

std::vector< VecFloat2 >	m_downsample_data

float	m_offset_v1

float	m_offset_v2

int	m_arry_show_num

int	m_sample

int	m_sample_unit

int	m_count_temp

std::vector< GPathBufferStorage::value_type >	m_points

DataRangeHelper	m_range_store [2]

Protected 属性继承自 BUI::CChartSeriesLine
GImage *	m_img_pattern

BeStringA	m_math_expr

ShadowInfo *	m_shadow

BeString	m_text

GColor	m_color_text

BOOL	m_monotonicity_x

Protected 属性继承自 BUI::CChartSeriesContain
std::vector< std::shared_ptr< CChartElement > >	m_elements

Protected 属性继承自 BUI::VisibleProperty
BOOL	m_is_visbale

Protected 属性继承自 BUI::GStyleMarkShape
TypeMarkShape	m_mark_style

double	m_mark_size

GColor	m_mark_color

GColor	m_mark_sel_color

Protected 属性继承自 BUI::GStyleLine
LineMode	m_line_mode

BOOL	m_fill_path

Protected 属性继承自 BUI::GPenInfo
PenType	m_pen_type

GColor	m_pen_color

int	m_pen_size

额外继承的成员函数
静态 Public 成员函数继承自 BUI::GStyleMarkShape
static void	PaintMarkShape (ISurface pSurface, int cx, int cy, TypeMarkShape style, int size, const GColor &color, const RECT &rcDiagram, RECT rcClip)

static void	PaintMarkShapeBorder (ISurface pSurface, int cx, int cy, TypeMarkShape style, int marksize, int bordersize, const GColor &color, const RECT &rcDiagram, RECT rcClip)

static BOOL	PtInMarkShape (POINT pt, int cx, int cy, TypeMarkShape style, int size)

Public 属性继承自 BUI::CChartSeries
BeString	m_name

UINT	m_series_id

BOOL	m_is_enable

GShadowContain	m_shadow_contain

Public 属性继承自 BUI::CChartDataLabel
BOOL	m_is_show_data_label

BOOL	m_is_draw_line

double	m_text_angle

double	m_text_distance

GColor	m_color_text

GColor	m_ele_color

Protected 成员函数继承自 BUI::CChartSeriesContain
int	GetFirstVisibleEleIndex () const

int	GetVisibleEleEnd (int begin) const

详细描述

线条序列

构造及析构函数说明

◆ CChartSeriesLinePoints()

BUI::CChartSeriesLinePoints::CChartSeriesLinePoints ( )

◆ ~CChartSeriesLinePoints()

virtual BUI::CChartSeriesLinePoints::~CChartSeriesLinePoints ( )

virtual

成员函数说明

◆ AppendValue2()

BOOL BUI::CChartSeriesLinePoints::AppendValue2	(	double	v2,
		BOOL	isMark = `FALSE`,
		BOOL	check_range = `TRUE`
	)

添加数据点的v2值

参数

v2	数据
isMark	是否标记数据
check_range	自动计算v2范围

返回: BOOL: 若返回TRUE，则表示需要刷新。若为FALSE，则不需要刷新

◆ AppendValue2ByArray()

BOOL BUI::CChartSeriesLinePoints::AppendValue2ByArray	(	double *	v2,
		int	count,
		BOOL	check_range = `TRUE`
	)

添加多个数据点的v2值

参数

v2	数据起点指针
count	数据长度
check_range	自动计算v2范围

返回: BOOL: 若返回TRUE，则表示需要刷新。若为FALSE，则不需要刷新向指定缓冲数组中添加数据。

◆ AppendValuePair()

void BUI::CChartSeriesLinePoints::AppendValuePair	(	double	v1,
		double	v2,
		BOOL	check_range = `TRUE`
	)

添加数据点(v1,v2)。注意:AppendValuePair不可以和（AppendValue2，AppendValue2ByArray）同时使用。

◆ ClearPoints()

void BUI::CChartSeriesLinePoints::ClearPoints ( BOOL clear_v1 = TRUE )

清空数据

参数

clear_v1 :若为TRUE，则清除v1数组。若为FALSE，不清除v1数组。v2始终会被清除

◆ CopyValue2Points()

void BUI::CChartSeriesLinePoints::CopyValue2Points	(	std::vector< float > &	vec,
		int	back_idx
	)

拷贝第二个坐标轴指定缓冲的数组引用（线程安全，但有O(n)拷贝开销）

参数

back_idx

返回: std::vector<float>&

◆ GetRangeY()

void BUI::CChartSeriesLinePoints::GetRangeY ( DataRangeHelper & range ) const

获得当前可视下v2的范围

◆ GetValue2Points()

std::vector< float > & BUI::CChartSeriesLinePoints::GetValue2Points ( int back_idx )

获得第二个坐标轴指定缓冲的数组引用(非线程安全，但是无拷贝开销)

参数

back_idx

返回: std::vector<float>&

◆ InitVector1Data()

void BUI::CChartSeriesLinePoints::InitVector1Data	(	int	count,
		float	begin,
		float	step
	)

初始化第一组数据

参数

count	数量
begin	起点
step	步长

◆ OnPaintSeries()

void BUI::CChartSeriesLinePoints::OnPaintSeries	(	ISurface *	pSurface,
		const RECT &	rcDiagram,
		RECT *	lpUpdate
	)

overridevirtual

重载 BUI::CChartSeriesLine .

◆ OnSizeChanged()

void BUI::CChartSeriesLinePoints::OnSizeChanged ( )

overridevirtual

重载 BUI::CChartSeries .

◆ SetCapacity()

void BUI::CChartSeriesLinePoints::SetCapacity ( int count )

设置可容纳点数量的最大值

参数

count:最大容量

◆ SetDownSample()

void BUI::CChartSeriesLinePoints::SetDownSample ( int sample )

设置降采样步长。即每sample个点降为1个点。最后的显示数据长度=实际数据长度/sample。

参数

sample 若 sample < 0,则表示自动根据轴计算。若sample=1，则原样输出。若sample>1, 则降采样显示

◆ SetDownSampleUnit()

void BUI::CChartSeriesLinePoints::SetDownSampleUnit ( int sample_unit )

自动降采样时,此变量用于对采样率取下整。注意:仅在自动计算降采样时有效。

参数

sample_unit 若sample_unit <= 0，则不做处理。若 sample_unit > 1时,即真实采样=floor(自动采样/m_sample_unit);

◆ SetFirstPos()

void BUI::CChartSeriesLinePoints::SetFirstPos ( int pos )

设置当前显示数据起点位置。

参数

pos 位置

◆ SetValue1Offset()

void BUI::CChartSeriesLinePoints::SetValue1Offset ( float dv1 )

设置v1数组中，每一个值的偏移量。相当于整体平移

参数

dv1 偏移量

◆ SetValue2Offset()

void BUI::CChartSeriesLinePoints::SetValue2Offset ( float dv2 )

设置v2数组中，每一个值的偏移量。相当于整体平移

参数

dv2 偏移量

◆ ShellSeriesAttribute()

void BUI::CChartSeriesLinePoints::ShellSeriesAttribute	(	const BeString &	szName,
		const BeString &	szText,
		ICoordList *	crdlist
	)

overridevirtual

命令控制和属性设置接口

szName属性	szText语法格式
Coord 设置坐标系	Coord="坐标系名称"
capacity 最大数据点个数	Coord="坐标系名称"
sample 显示采样率	sample="10"
sample-unit 自动降采样模式下取整除数	sample-unit="10"
realtime 是否实时显示	realtime="false"
x-by-index x为索引序号，不需要传入x值	x-by-index="true"
init-x 初始化x轴	init-x="100,0,1" 点个数，起点，步长
step-x 采样间隔	step-x="0.2"

重载 BUI::CChartSeriesLine .

类成员变量说明

◆ m_arry_show_num

int BUI::CChartSeriesLinePoints::m_arry_show_num

protected

◆ m_coord_obj

CChartCoordinate* BUI::CChartSeriesLinePoints::m_coord_obj

protected

◆ m_count_temp

int BUI::CChartSeriesLinePoints::m_count_temp

protected

◆ m_downsample_data

std::vector<VecFloat2> BUI::CChartSeriesLinePoints::m_downsample_data

protected

◆ m_first_pos_v2

int BUI::CChartSeriesLinePoints::m_first_pos_v2[2]

protected

◆ m_is_realtime

BOOL BUI::CChartSeriesLinePoints::m_is_realtime

protected

◆ m_is_x_by_index

BOOL BUI::CChartSeriesLinePoints::m_is_x_by_index

protected

◆ m_mutex_running

AtomicLock BUI::CChartSeriesLinePoints::m_mutex_running

protected

◆ m_offset_v1

float BUI::CChartSeriesLinePoints::m_offset_v1

protected

◆ m_offset_v2

float BUI::CChartSeriesLinePoints::m_offset_v2

protected

◆ m_point_max_count

int BUI::CChartSeriesLinePoints::m_point_max_count

protected

◆ m_points

std::vector<GPathBufferStorage::value_type> BUI::CChartSeriesLinePoints::m_points

protected

◆ m_range_store

DataRangeHelper BUI::CChartSeriesLinePoints::m_range_store[2]

protected

◆ m_sample

int BUI::CChartSeriesLinePoints::m_sample

protected

◆ m_sample_unit

int BUI::CChartSeriesLinePoints::m_sample_unit

protected

◆ m_v1

std::vector<float> BUI::CChartSeriesLinePoints::m_v1

protected

◆ m_v2

std::vector<float> BUI::CChartSeriesLinePoints::m_v2[2]

protected

◆ m_v2_mark

std::vector<VecFloat2> BUI::CChartSeriesLinePoints::m_v2_mark[2]

protected

◆ m_x_step

float BUI::CChartSeriesLinePoints::m_x_step

protected

Public 成员函数

Protected 属性

额外继承的成员函数

详细描述

构造及析构函数说明

◆ CChartSeriesLinePoints()

◆ ~CChartSeriesLinePoints()

成员函数说明

◆ AppendValue2()

◆ AppendValue2ByArray()

◆ AppendValuePair()

◆ ClearPoints()

◆ CopyValue2Points()

◆ GetRangeY()

◆ GetValue2Points()

◆ InitVector1Data()

◆ OnPaintSeries()

◆ OnSizeChanged()

◆ SetCapacity()

◆ SetDownSample()

◆ SetDownSampleUnit()

◆ SetFirstPos()

◆ SetValue1Offset()

◆ SetValue2Offset()

◆ ShellSeriesAttribute()

类成员变量说明

◆ m_arry_show_num

◆ m_coord_obj

◆ m_count_temp

◆ m_downsample_data

◆ m_first_pos_v2

◆ m_is_realtime

◆ m_is_x_by_index

◆ m_mutex_running

◆ m_offset_v1

◆ m_offset_v2

◆ m_point_max_count

◆ m_points

◆ m_range_store

◆ m_sample

◆ m_sample_unit

◆ m_v1

◆ m_v2

◆ m_v2_mark

◆ m_x_step
