BUI::CChartElement类 参考

图表图形接口 更多...

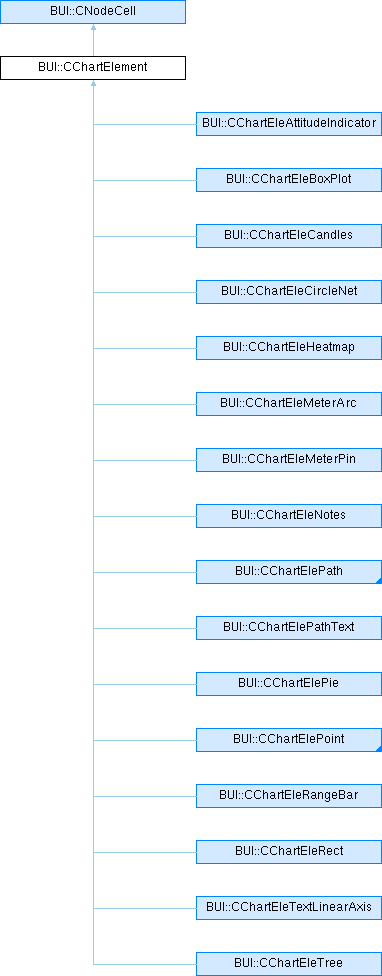

类 BUI::CChartElement 继承关系图:

Public 成员函数
	CChartElement ()
virtual	~CChartElement ()
CChartDataLabel *	GetDataLabelInfo () const
void	SetDataLabelInfo (CChartDataLabel *label_style)
BOOL	IsDrawDataLabel () const
void	DoChangeEleThemeColors (const BeString &name)
void	DrawDataLabel (ISurface *surface, int x, int y, LPCTSTR str, const RECT &rc_diagram, RECT *rc_update)
virtual void	DoPaintElement (ISurface *surface, const GColor &color, const RECT &rc_diagram, RECT *rc_update)
virtual VecFloat2	GetPoint ()
virtual VecFloat2	GetLogicPoint (int field=0)
virtual BOOL	IsViewportArea ()
virtual BOOL	IsVaild ()
virtual BOOL	GetAxisXPoint (VecFloat2 &pt)
virtual BOOL	OnNotifyMessage (IEventHandler *notify, UINT message, WPARAM wp, LPARAM lp)
virtual void	ShellElementAttribute (const BeString &str_name, const BeString &str_value, ICoordList *coord_list=NULL)
	命令控制和属性设置接口
virtual void	OnParseElementData (XMLItem *node, CControlUI *parent)
virtual void	OnTranslateLanguage ()
virtual void	ChangeElementThemeColors ()
virtual void	GetElementRelationship (std::vector< BeString > &list)
	获得类的继承关系
Public 成员函数 继承自 BUI::CNodeCell
	CNodeCell ()
	CNodeCell (std::shared_ptr< CNodeData > valuedata)
virtual	~CNodeCell ()
void	BindAction (std::shared_ptr< IActionNotify > action)
	绑定事件
std::shared_ptr< IActionNotify >	ActionOfNode () const
	获得事件
void	DoNodeAction () const
	执行事件
void	SetBackNodeData (const std::shared_ptr< CNodeData > &valuedata)
	设置背景显示节点
void	SetSyntaxAst (LPCTSTR str_script)
	设置内置脚本代码
void	SetName (BeString id)
	设置单元格名称id
BeString &	Name ()
	单元格名称id
BOOL	IsEnable () const
	是否可用
void	SetEnable (BOOL enable)
	开启(或禁用)单元格。默认保持开启
void	OnDrawNodeCell (ISurface *surface, int paint_state, RECT rc_cell, const GColor &color_text, UINT text_align, PathTransInfo *clip_path=NULL)
void	SetNodeData (const std::shared_ptr< CNodeData > &valuedata)
	设置单元格数据
std::shared_ptr< CNodeData > &	GetNodeData ()
	获得单元格数据
void	AddNodeData (const std::shared_ptr< CNodeData > &valuedata, int w=0, int h=0, LayoutMode mw=AdaptFill, LayoutMode mh=AdaptFill)
void	InsertNodeData (int pos, const std::shared_ptr< CNodeData > &valuedata, int w=0, int h=0, LayoutMode mw=AdaptFill, LayoutMode mh=AdaptFill)
void	SetNotifyHandler (IEventHandler *notify)
	设置消息通知处理者
void	NeedUpdateUI ()
	刷新单元格ui
void	NeedUpdateHostUI ()
	刷新宿主UI
virtual void	ShellNodeCellAttribute (const BeString &str_name, const BeString &str_value)
	属性设置
ItemState &	GetNodeState ()
	单元格状态
void	ResetNodeState ()
	重置单元格状态
BOOL	PtInCell (POINT pt)
	鼠标命中单元格测试
RECT	CellRect () const
	单元格位置矩形区域
void	SetRect (int x, int y, int w, int h)
	设置单元格位置矩形区域

Protected 属性
CChartDataLabel *	m_data_label

额外继承的成员函数
Public 属性 继承自 BUI::CNodeCell
RECT	m_rc_cell
ItemState	m_state
BeString	m_name_id
IEventHandler *	m_notify_handler
std::shared_ptr< CNodeData >	m_backdata
std::shared_ptr< CNodeData >	m_rawdata
std::shared_ptr< IActionNotify >	m_action
syntax_info *	m_cmd_ast

详细描述

图表图形接口

构造及析构函数说明

CChartElement()

BUI::CChartElement::CChartElement

(

)

~CChartElement()

virtual BUI::CChartElement::~CChartElement ( )

virtual

成员函数说明

ChangeElementThemeColors()

virtual void BUI::CChartElement::ChangeElementThemeColors ( )

virtual

DoChangeEleThemeColors()

void BUI::CChartElement::DoChangeEleThemeColors

(

const BeString &

name

)

DoPaintElement()

virtual void BUI::CChartElement::DoPaintElement ( ISurface * surface, const GColor & color, const RECT & rc_diagram, RECT * rc_update )

virtual

被 BUI::CChartEleAttitudeIndicator, BUI::CChartEleBoxPlot, BUI::CChartEleCandles, BUI::CChartEleCircleNet, BUI::CChartEleCorssLine, BUI::CChartEleHeatmap, BUI::CChartEleLegendBox, BUI::CChartElementImage, BUI::CChartEleMeterArc, BUI::CChartEleMeterPin, BUI::CChartEleNotes, BUI::CChartElePath, BUI::CChartElePathText, BUI::CChartElePie, BUI::CChartElePoint, BUI::CChartElePointHeat, BUI::CChartEleRangeBar, BUI::CChartEleRect, BUI::CChartEleScatter, BUI::CChartEleScatterBorder, BUI::CChartEleText, BUI::CChartEleTextLinearAxis, BUI::CChartEleTree , 以及 BUI::CChartEleWaterDroplet 重载.

DrawDataLabel()

void BUI::CChartElement::DrawDataLabel	(	ISurface *	surface,
		int	x,
		int	y,
		LPCTSTR	str,
		const RECT &	rc_diagram,
		RECT *	rc_update )

GetAxisXPoint()

virtual BOOL BUI::CChartElement::GetAxisXPoint ( VecFloat2 & pt )

virtual

GetDataLabelInfo()

CChartDataLabel * BUI::CChartElement::GetDataLabelInfo

(

)

const

GetElementRelationship()

virtual void BUI::CChartElement::GetElementRelationship ( std::vector< BeString > & list )

virtual

获得类的继承关系

被 BUI::CChartEleAttitudeIndicator, BUI::CChartEleBoxPlot, BUI::CChartEleCandles, BUI::CChartEleCircleNet, BUI::CChartEleCorssLine, BUI::CChartEleHeatmap, BUI::CChartEleLegendBox, BUI::CChartElementImage, BUI::CChartEleMeterArc, BUI::CChartEleMeterPin, BUI::CChartEleNotes, BUI::CChartElePath, BUI::CChartElePathText, BUI::CChartElePie, BUI::CChartElePoint, BUI::CChartElePointHeat, BUI::CChartEleRangeBar, BUI::CChartEleRect, BUI::CChartEleScatter, BUI::CChartEleScatterBorder, BUI::CChartEleText, BUI::CChartEleTextLinearAxis, BUI::CChartEleTree , 以及 BUI::CChartEleWaterDroplet 重载.

GetLogicPoint()

virtual VecFloat2 BUI::CChartElement::GetLogicPoint ( int field = 0 )

virtual

被 BUI::CChartEleBoxPlot, BUI::CChartEleCandles , 以及 BUI::CChartElePoint 重载.

GetPoint()

virtual VecFloat2 BUI::CChartElement::GetPoint ( )

virtual

被 BUI::CChartElePoint 重载.

IsDrawDataLabel()

BOOL BUI::CChartElement::IsDrawDataLabel

(

)

const

IsVaild()

virtual BOOL BUI::CChartElement::IsVaild ( )

virtual

被 BUI::CChartEleBoxPlot, BUI::CChartEleCandles, BUI::CChartEleMeterArc, BUI::CChartEleMeterPin, BUI::CChartElePath, BUI::CChartElePie, BUI::CChartElePoint, BUI::CChartEleRangeBar, BUI::CChartEleRect , 以及 BUI::CChartEleTextLinearAxis 重载.

IsViewportArea()

virtual BOOL BUI::CChartElement::IsViewportArea ( )

virtual

被 BUI::CChartEleBoxPlot, BUI::CChartEleCandles, BUI::CChartEleCorssLine, BUI::CChartElePoint, BUI::CChartEleRangeBar , 以及 BUI::CChartEleScatter 重载.

OnNotifyMessage()

virtual BOOL BUI::CChartElement::OnNotifyMessage ( IEventHandler * notify, UINT message, WPARAM wp, LPARAM lp )

virtual

被 BUI::CChartEleAttitudeIndicator, BUI::CChartEleBoxPlot, BUI::CChartEleCandles, BUI::CChartEleCircleNet, BUI::CChartEleLegendBox, BUI::CChartElePath, BUI::CChartElePie, BUI::CChartElePoint, BUI::CChartEleRangeBar, BUI::CChartEleScatter, BUI::CChartEleTree , 以及 BUI::CChartEleWaterDroplet 重载.

OnParseElementData()

virtual void BUI::CChartElement::OnParseElementData ( XMLItem * node, CControlUI * parent )

virtual

被 BUI::CChartEleLegendBox, BUI::CChartElePath, BUI::CChartElePathText , 以及 BUI::CChartEleTree 重载.

OnTranslateLanguage()

virtual void BUI::CChartElement::OnTranslateLanguage ( )

virtual

SetDataLabelInfo()

void BUI::CChartElement::SetDataLabelInfo

(

CChartDataLabel *

label_style

)

ShellElementAttribute()

virtual void BUI::CChartElement::ShellElementAttribute ( const BeString & str_name, const BeString & str_value, ICoordList * coord_list = NULL )

virtual

命令控制和属性设置接口

szName属性	szText语法格式
name 图形名称	name="xxx"

被 BUI::CChartEleAttitudeIndicator, BUI::CChartEleBoxPlot, BUI::CChartEleCandles, BUI::CChartEleCircleNet, BUI::CChartEleCorssLine, BUI::CChartEleHeatmap, BUI::CChartEleLegendBox, BUI::CChartElementImage, BUI::CChartEleMeterArc, BUI::CChartEleMeterPin, BUI::CChartEleNotes, BUI::CChartElePath, BUI::CChartElePathText, BUI::CChartElePie, BUI::CChartElePoint, BUI::CChartElePointHeat, BUI::CChartEleRangeBar, BUI::CChartEleRect, BUI::CChartEleScatter, BUI::CChartEleScatterBorder, BUI::CChartEleText, BUI::CChartEleTextLinearAxis, BUI::CChartEleTree , 以及 BUI::CChartEleWaterDroplet 重载.

类成员变量说明

m_data_label

CChartDataLabel* BUI::CChartElement::m_data_label

protected
