CWidgetWnd 窗口 SDK封装比CWnd要更快更小巧更多...

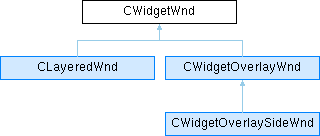

类 CWidgetWnd 继承关系图:

Public 成员函数
	CWidgetWnd (void)

virtual	~CWidgetWnd (void)

void	EnableAdjust (bool bHittest)
	禁用窗口拉伸功能

HWND	CreateFrame (LPCTSTR pstrWndName, DWORD dwExStyle, const RECT rc, HMENU hMenu=NULL)
	创建一个主框架风格的窗口

HWND	CreateFrame (LPCTSTR pstrWndName, DWORD dwExStyle=0, int x=CW_USEDEFAULT, int y=CW_USEDEFAULT, int cx=CW_USEDEFAULT, int cy=CW_USEDEFAULT, HMENU hMenu=NULL)

HWND	Create (HWND hwndParent, LPCTSTR pstrName, DWORD dwStyle, DWORD dwExStyle, const RECT rc, HMENU hMenu=NULL)
	创建一个自定义风格的窗口

HWND	Create (HWND hwndParent, LPCTSTR pstrName, DWORD dwStyle, DWORD dwExStyle=0, int x=CW_USEDEFAULT, int y=CW_USEDEFAULT, int cx=CW_USEDEFAULT, int cy=CW_USEDEFAULT, HMENU hMenu=NULL)

	operator HWND () const
	类型转换

void	CenterWindow ()
	居中显示

void	ShowWindow (BOOL bVisable)
	非模态显示

void	SetTitle (LPCTSTR title)
	设置标题

void	SetOpacity (BYTE nOpacity)

void	SetBgColor (COLORREF color)

void	EnableWindow (BOOL bEnable)

void	EnableDragMove (BOOL bEnable)

void	SetIcon (UINT nRes)
	设置图标

void	SetVarName (LPCTSTR lpVarName)

UINT	DoModal ()
	模态显示

UINT	DoModalRealTime (void(*idle_func)())
	实时模式显示

void	EndDialog (UINT uRetCode)

void	OnOK ()

void	OnCancel ()

void	EnableDragDrop (bool bDropEnable)

void	ShowTaskbarIcon (bool bShow)
	是否在任务栏图标(不是托盘图标哦)

void	Close (UINT nRet=IDOK)

void	SetMinSize (int cx, int cy)
	设置窗口大小最小尺寸

virtual void	OnInitWindows ()
	创建完成后调用

virtual LPCTSTR	GetWndClassName ()
	返回注册窗口类的名

LRESULT	SendMessage (UINT uMsg, WPARAM wParam=0L, LPARAM lParam=0L)
	消息发送接口

LRESULT	PostMessage (UINT uMsg, WPARAM wParam=0L, LPARAM lParam=0L)

virtual BOOL	DefWndProc (UINT uMsg, WPARAM wParam, LPARAM lParam)

virtual BOOL	OnMessage (UINT message, WPARAM wParam, LPARAM lParam, LPCTSTR szName)

virtual void	OnFinalMessage ()

virtual LRESULT	OnLButtonDown (WPARAM wParam=0L, LPARAM lParam=0L)

virtual LRESULT	OnLButtonUp (WPARAM wParam=0L, LPARAM lParam=0L)

virtual LRESULT	OnRButtonDown (WPARAM wParam=0L, LPARAM lParam=0L)

virtual LRESULT	OnRButtonUp (WPARAM wParam=0L, LPARAM lParam=0L)

virtual LRESULT	OnMouseMove (WPARAM wParam=0L, LPARAM lParam=0L)

virtual LRESULT	OnMouseLeave (WPARAM wParam=0L, LPARAM lParam=0L)

virtual LRESULT	OnKeyDown (WPARAM wParam=0L, LPARAM lParam=0L)

virtual LRESULT	OnKeyUp (WPARAM wParam=0L, LPARAM lParam=0L)

virtual LRESULT	OnChar (WPARAM wParam=0L, LPARAM lParam=0L)

virtual void	OnPaint (HDC hdc, RECT *inVaildRect)

virtual LRESULT	OnPaintBackGround (HDC hdc, RECT *lprcPaint)

virtual LRESULT	OnSize (WPARAM wParam=0L, LPARAM lParam=0L)

virtual LRESULT	OnNcHitTest (WPARAM wParam=0L, LPARAM lParam=0L)

virtual bool	OnDrop (FORMATETC pFmtEtc, STGMEDIUM &medium, DWORD pdwEffect)

Public 属性
HWND	m_hwnd

BeString	m_var_name
	窗口的变量标识，根据这个字符标识，可以查询到窗口对象

CIDropTarget *	m_pDropTarget

void *	m_thunk
	Thunk技术

SIZE	m_wnd_min_size
	窗口最小尺寸

UINT	m_exit_code

UINT	m_hit_test
	当前的hitest值

WNDPROC	m_pfnSuperWindowProc

bool	m_is_mouse_track

bool	m_is_hit_test
	是否可以调整大小

bool	m_is_drag_move
	是否可以拖拽移动

COLORREF	m_bg_color

详细描述

CWidgetWnd 窗口 SDK封装比CWnd要更快更小巧

构造及析构函数说明

◆ CWidgetWnd()

CWidgetWnd::CWidgetWnd ( void )

◆ ~CWidgetWnd()

virtual CWidgetWnd::~CWidgetWnd ( void )

virtual

成员函数说明

◆ CenterWindow()

void CWidgetWnd::CenterWindow ( )

居中显示

◆ Close()

void CWidgetWnd::Close ( UINT nRet = IDOK )

◆ Create() [1/2]

HWND CWidgetWnd::Create	(	HWND	hwndParent,
		LPCTSTR	pstrName,
		DWORD	dwStyle,
		DWORD	dwExStyle,
		const RECT	rc,
		HMENU	hMenu = `NULL`
	)

创建一个自定义风格的窗口

◆ Create() [2/2]

HWND CWidgetWnd::Create	(	HWND	hwndParent,
		LPCTSTR	pstrName,
		DWORD	dwStyle,
		DWORD	dwExStyle = `0`,
		int	x = `CW_USEDEFAULT`,
		int	y = `CW_USEDEFAULT`,
		int	cx = `CW_USEDEFAULT`,
		int	cy = `CW_USEDEFAULT`,
		HMENU	hMenu = `NULL`
	)

◆ CreateFrame() [1/2]

HWND CWidgetWnd::CreateFrame	(	LPCTSTR	pstrWndName,
		DWORD	dwExStyle,
		const RECT	rc,
		HMENU	hMenu = `NULL`
	)

创建一个主框架风格的窗口

◆ CreateFrame() [2/2]

HWND CWidgetWnd::CreateFrame	(	LPCTSTR	pstrWndName,
		DWORD	dwExStyle = `0`,
		int	x = `CW_USEDEFAULT`,
		int	y = `CW_USEDEFAULT`,
		int	cx = `CW_USEDEFAULT`,
		int	cy = `CW_USEDEFAULT`,
		HMENU	hMenu = `NULL`
	)

◆ DefWndProc()

virtual BOOL CWidgetWnd::DefWndProc	(	UINT	uMsg,
		WPARAM	wParam,
		LPARAM	lParam
	)

virtual

被 CLayeredWnd , 以及 CWidgetOverlayWnd 重载.

◆ DoModal()

UINT CWidgetWnd::DoModal ( )

模态显示

◆ DoModalRealTime()

UINT CWidgetWnd::DoModalRealTime ( void(*)() idle_func )

实时模式显示

◆ EnableAdjust()

void CWidgetWnd::EnableAdjust ( bool bHittest )

禁用窗口拉伸功能

◆ EnableDragDrop()

void CWidgetWnd::EnableDragDrop ( bool bDropEnable )

◆ EnableDragMove()

void CWidgetWnd::EnableDragMove ( BOOL bEnable )

◆ EnableWindow()

void CWidgetWnd::EnableWindow ( BOOL bEnable )

◆ EndDialog()

void CWidgetWnd::EndDialog ( UINT uRetCode )

◆ GetWndClassName()

virtual LPCTSTR CWidgetWnd::GetWndClassName ( )

virtual

返回注册窗口类的名

◆ OnCancel()

void CWidgetWnd::OnCancel ( )

◆ OnChar()

virtual LRESULT CWidgetWnd::OnChar	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ OnDrop()

virtual bool CWidgetWnd::OnDrop	(	FORMATETC *	pFmtEtc,
		STGMEDIUM &	medium,
		DWORD *	pdwEffect
	)

virtual

◆ OnFinalMessage()

virtual void CWidgetWnd::OnFinalMessage ( )

virtual

◆ OnInitWindows()

virtual void CWidgetWnd::OnInitWindows ( )

virtual

创建完成后调用

◆ OnKeyDown()

virtual LRESULT CWidgetWnd::OnKeyDown	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ OnKeyUp()

virtual LRESULT CWidgetWnd::OnKeyUp	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ OnLButtonDown()

virtual LRESULT CWidgetWnd::OnLButtonDown	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ OnLButtonUp()

virtual LRESULT CWidgetWnd::OnLButtonUp	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ OnMessage()

virtual BOOL CWidgetWnd::OnMessage	(	UINT	message,
		WPARAM	wParam,
		LPARAM	lParam,
		LPCTSTR	szName
	)

virtual

◆ OnMouseLeave()

virtual LRESULT CWidgetWnd::OnMouseLeave	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ OnMouseMove()

virtual LRESULT CWidgetWnd::OnMouseMove	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ OnNcHitTest()

virtual LRESULT CWidgetWnd::OnNcHitTest	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ OnOK()

void CWidgetWnd::OnOK ( )

◆ OnPaint()

virtual void CWidgetWnd::OnPaint	(	HDC	hdc,
		RECT *	inVaildRect
	)

virtual

◆ OnPaintBackGround()

virtual LRESULT CWidgetWnd::OnPaintBackGround	(	HDC	hdc,
		RECT *	lprcPaint
	)

virtual

◆ OnRButtonDown()

virtual LRESULT CWidgetWnd::OnRButtonDown	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ OnRButtonUp()

virtual LRESULT CWidgetWnd::OnRButtonUp	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ OnSize()

virtual LRESULT CWidgetWnd::OnSize	(	WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

virtual

◆ operator HWND()

CWidgetWnd::operator HWND ( ) const

类型转换

◆ PostMessage()

LRESULT CWidgetWnd::PostMessage	(	UINT	uMsg,
		WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

◆ SendMessage()

LRESULT CWidgetWnd::SendMessage	(	UINT	uMsg,
		WPARAM	wParam = `0L`,
		LPARAM	lParam = `0L`
	)

消息发送接口

◆ SetBgColor()

void CWidgetWnd::SetBgColor ( COLORREF color )

◆ SetIcon()

void CWidgetWnd::SetIcon ( UINT nRes )

设置图标

◆ SetMinSize()

void CWidgetWnd::SetMinSize	(	int	cx,
		int	cy
	)

设置窗口大小最小尺寸

◆ SetOpacity()

void CWidgetWnd::SetOpacity ( BYTE nOpacity )

◆ SetTitle()

void CWidgetWnd::SetTitle ( LPCTSTR title )

设置标题

◆ SetVarName()

void CWidgetWnd::SetVarName ( LPCTSTR lpVarName )

◆ ShowTaskbarIcon()

void CWidgetWnd::ShowTaskbarIcon ( bool bShow )

是否在任务栏图标(不是托盘图标哦)

◆ ShowWindow()

void CWidgetWnd::ShowWindow ( BOOL bVisable )

非模态显示

类成员变量说明

◆ m_bg_color

COLORREF CWidgetWnd::m_bg_color

◆ m_exit_code

UINT CWidgetWnd::m_exit_code

◆ m_hit_test

UINT CWidgetWnd::m_hit_test

当前的hitest值

◆ m_hwnd

HWND CWidgetWnd::m_hwnd

◆ m_is_drag_move

bool CWidgetWnd::m_is_drag_move

是否可以拖拽移动

◆ m_is_hit_test

bool CWidgetWnd::m_is_hit_test

是否可以调整大小

◆ m_is_mouse_track

bool CWidgetWnd::m_is_mouse_track

◆ m_pDropTarget

CIDropTarget* CWidgetWnd::m_pDropTarget

◆ m_pfnSuperWindowProc

WNDPROC CWidgetWnd::m_pfnSuperWindowProc

◆ m_thunk

void* CWidgetWnd::m_thunk

Thunk技术

◆ m_var_name

BeString CWidgetWnd::m_var_name

窗口的变量标识，根据这个字符标识，可以查询到窗口对象

◆ m_wnd_min_size

SIZE CWidgetWnd::m_wnd_min_size

窗口最小尺寸
